FG485_0030

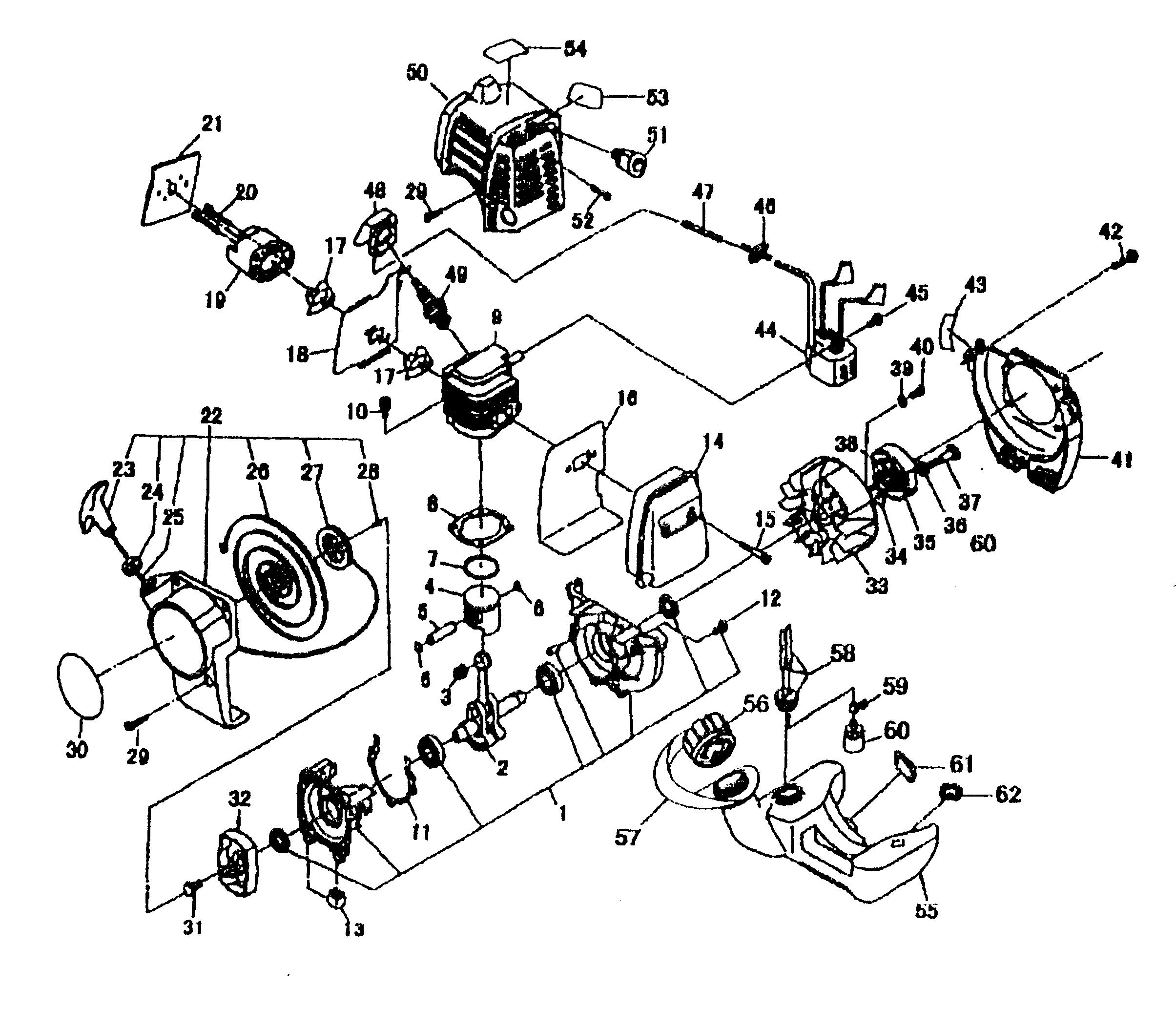

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	738089	THROTTLE WIRE 310+67 (OBSOLETE)	N/A	POA
	738090	STOP WIRE	£11.24	Add
001	738001	CRANKCASE COMPL	£384.20	Add
002	738006	CRANKSHAFT COMPL	£366.62	Add
003	738009	NEEDLE BEARING	£14.70	Add
004	738007	PISTON	£97.29	Add
005	738013	PISTON PIN 25CC	£7.50	Add
006	738014	Piston Clip	£2.56	Add
007	738010	PISTON RING 25CC	£15.80	Add
008	738004	GASKET CYLINDER	£6.80	Add
009	738003	CYLINDER	£404.75	Add
010	710279	Screw Socket M5*20WS	£5.96	Add
011	738005	GASKET CRANKCASE	£3.47	Add
012	662525	Screw Pan+ M5*25S	£2.80	Add
013	738039	DAMPER	£3.66	Add
014	738015	MUFFLER EXHAUST	£124.62	Add
015	710278	Screw Socket M5x45W	£5.09	Add
016	738016	GASKET MUFFLER	£35.83	Add
017	738018	Insulator Gasket	£5.09	Add
018	738019	INSULATOR CARBURETOR	£17.39	Add
019	738017	INSULATOR	£16.47	Add
020	710280	SCREW M5X24WS	£4.23	Add
021	738020	SPACER GASKET	£7.80	Add
022	738021	STARTER REWIND	£145.16	Add
023	738025	STARTER HANDLE	£11.98	Add
024	738027	Rope Guide	£8.36	Add
025	738024	Rope	£26.28	Add
026	738022	SPIRAL SPRING	£35.11	Add
027	738026	REEL	£22.87	Add
028	812099	SET SCREW 731606	£3.94	Add
029	672520	DNR	£2.77	Add
031	738029	HEX M5X14W	£15.38	Add
032	738028	PULLEY	£49.50	Add
033	738040	FLYWHEEL	£155.25	Add
034	738050	Special Washer Ø6	£2.73	Add
035	738046	SHOE CLUTCH	£39.70	Add
036	738049	WASHER F6	£2.73	Add
037	738048	CLUTCH BOLT	£7.29	Add
038	738047	SPRING CLUTCH	£9.22	Add
039	710281	SPECIAL WASHER (t=1.8 DIAMETE	£2.54	Add
040	710277	SCREW M6X16SW	£3.34	Add
041	738097	COVER CYLINDER COMPL	£110.99	Add
042	662516	SCREW 5 X 16 (OBSOLETE) (OBSOLETE)	N/A	POA
044	738093	IGNITION COIL	£218.34	Add
045	672420	SCREW M4X20WS	£3.34	Add
046	738042	GROMMET	£5.79	Add
047	738044	Terminal	£4.35	Add
048	738043	PLUG CAP	£25.88	Add
049	780034	SPARK PLUG NGK BMR7A	£40.52	Add
050	738086	CYLINDER COVER	£83.69	Add
051	738092	CLAMP	£7.14	Add
052	672514	SCREW	£2.80	Add
055	738032	TANK FUEL (OBSOLETE)	N/A	POA
056	738532	TANK CAP ASSY-STRAP (OBSOLETE)	N/A	POA
057	738532	TANK CAP ASSY-STRAP (OBSOLETE)	N/A	POA
058	738034	TUBE	£29.02	Add
059	738035	Tube Clamp	£2.56	Add
060	731480	PUMP FILTER ASSY (OBSOLETE) (OBSOLETE)	N/A	POA
061	738037	PLATE	£7.14	Add
062	738038	PLATE	£7.14	Add
