FG489_0020

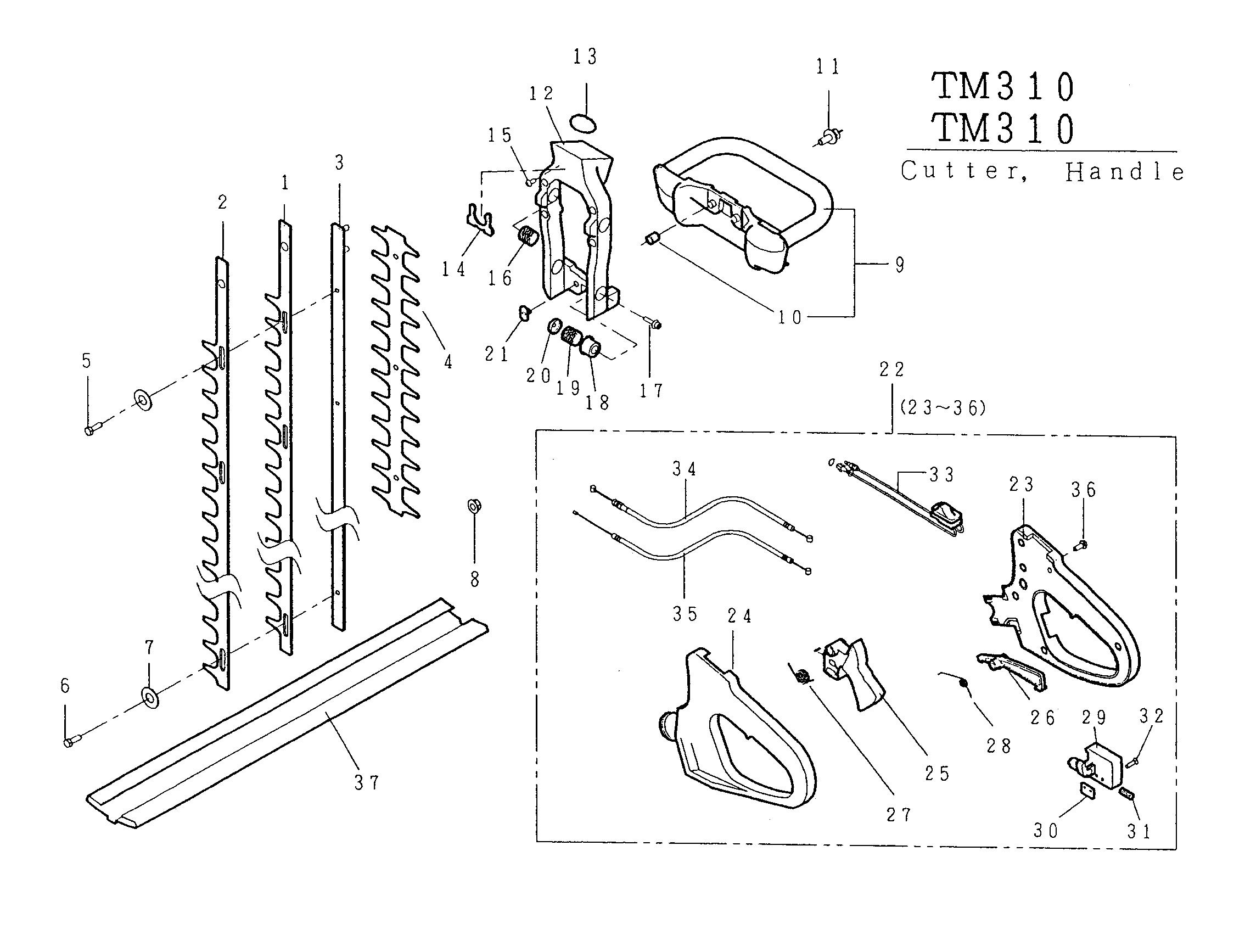

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG489_0020

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 91053-122 CUTTER(A) £94.15 Add
002 91054-113 CUTTER(B) £108.27 Add
003 11051-128 CUTTER GUIDE £46.93 Add
004 51090-122 PROTECTOR £69.34 Add
005 31029-105 STEP BOLT(S) £3.72 Add
006 31029-110 STEP BOLT¢S) £3.72 Add
007 68002-101 CUTTER WASHER £2.85 Add
008 584L0600 U-HEXAGON NUT FLANGE 584L-0600 £3.33 Add
009 51027-238 HANDLE £48.11 Add
010 98030-621 .BUSH N/A POA
011 31057-235 BOLT £1.89 Add
012 51022-171 BRACKET £35.54 Add
013 214B-5000 O-RING S50 £6.09 Add
014 11086-179 STOPPER £4.61 Add
015 477L-0408 (+)TRUSS TAPPING SCREW N/A POA
016 68013-326 SPRING £6.11 Add
017 423U-0515 SOCKET SCREW FLANGE £3.72 Add
018 11102-210 HOLDER £4.16 Add
019 68013-327 SPRING £6.11 Add
020 11102-209 HOLDER £3.24 Add
021 31038-102 FIXING NUT £2.03 Add
022 71014-368 HANDOLE ASS'Y (FOR TYPE M) £112.90 Add
022 71014-369 HANDOLE ASS'Y (FOR TYPE K) £112.90 Add
023 51106-127 .HANDLE (R) £24.05 Add
024 51106-128 .HANDLE (L) £24.05 Add
025 91010-190 .THROTTLE LEVER £7.78 Add
026 36081-113 .LOCK LEVER £5.05 Add
027 68013-321 SPRING £2.65 Add
028 68013-322 .SPRING £2.65 Add
029 36061-142 .KNOB £5.96 Add
030 11050-167 .FIXING PLATE £2.49 Add
031 68013-323 .SPRING £2.94 Add
032 465L-0310 .(+) TAPPING SCREW N/A POA
033 71148-148 .STOP SWITCH (FOR TYPE M) £13.48 Add
033 71148-149 .STOP SWITCH (FOR TYPE K) £13.48 Add
034 91057-108 .BRAKE WIRE £12.73 Add
035 91001-310 .THROTTLE WIRE (FOR TYPE M) £10.48 Add
035 91001-311 .THROTTLE WIRE (FOR TYPE K) £10.48 Add
036 471L-0420 .(+) TAPPING SCREW N/A POA
037 36065-388 COVER £12.30 Add
