FG761_0110

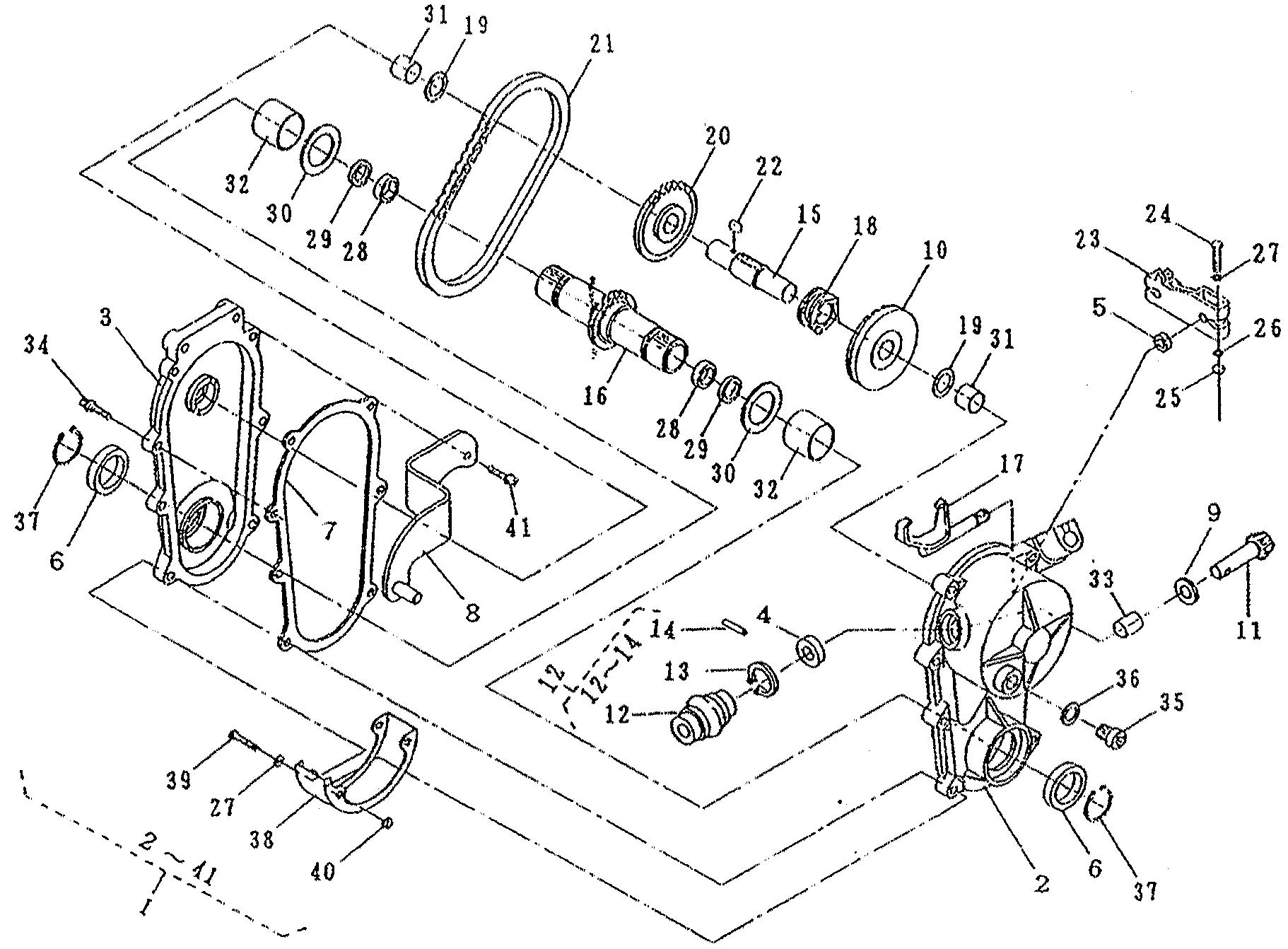

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG761_0110

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71950-211 GEAR CASE ASSY 71008-269 £589.61 Add
002 51001-243 GEAR CASE £88.43 Add
003 51001-244 GEAR CASE £54.44 Add
004 61002-161 OIL SEAL £3.19 Add
005 61002-162 OIL SEAL £2.42 Add
006 61002-188 OIL SEAL £4.86 Add
007 61019-189 PACKING £4.49 Add
008 11006-116 STAY £18.24 Add
009 61003-109 THRUST PLATE £2.55 Add
010 71950-206 BEVEL GEAR £53.58 Add
011 71950-206 BEVEL GEAR £53.58 Add
012 91097-101 UNIVERSAL JOINT £33.14 Add
013 812V-2000 C-SNAP RING FOR SHAFT £2.17 Add
014 717B0418 PARALLEL PIN £2.86 Add
015 64014-242 SHAFT £28.68 Add
016 64014-243 SHAFT £89.27 Add
017 11097-119 SHIFTER FORK £22.42 Add
018 11129-107 CLUTCH £24.33 Add
019 61024-118 SPACER £2.98 Add
020 36112-115 SPROCKET £31.10 Add
021 91074-107 CHAIN £20.12 Add
022 91020-147 KEY £4.22 Add
023 11104-153 ARM £11.21 Add
024 311M-0630 (+)HEXAGON BOLT (OBSOLETE) N/A POA
025 571L-0600 HEXAGON NUT FLANGE (OBSOLETE) N/A POA
026 613L-0600 PLAIN WASHER (OBSOLETE) N/A POA
027 611L0600 PLAIN WASHER 611L-0600 £1.66 Add
028 927B1512 BEARING (FJ-1512) £15.66 Add
029 61002-189 OIL SEAL £3.31 Add
030 61024-171 SPACER £3.31 Add
031 76007-125 BUSH £5.93 Add
032 76007-149 BUSH £10.06 Add
033 76007-167 BUSH £13.58 Add
034 315L-0625 (+)HEXAGON BOLT(SW.PW) (OBSOLETE) N/A POA
035 31057-126 NO LONGER AVAILABLE N/A POA
036 68001-110 FIBER WASHER £2.15 Add
037 812V2800 C-SNAP RING £2.86 Add
038 36065-507 COVER £22.54 Add
039 322L-0635 (+)HEXAGON BOLT (OBSOLETE) N/A POA
040 680L-0600 FLANGE LOCK NUT M16 N/A POA
041 315L-0616 (+)HEXAGON BOLT(SW,PW) (OBSOLETE) N/A POA
