FG761_0112

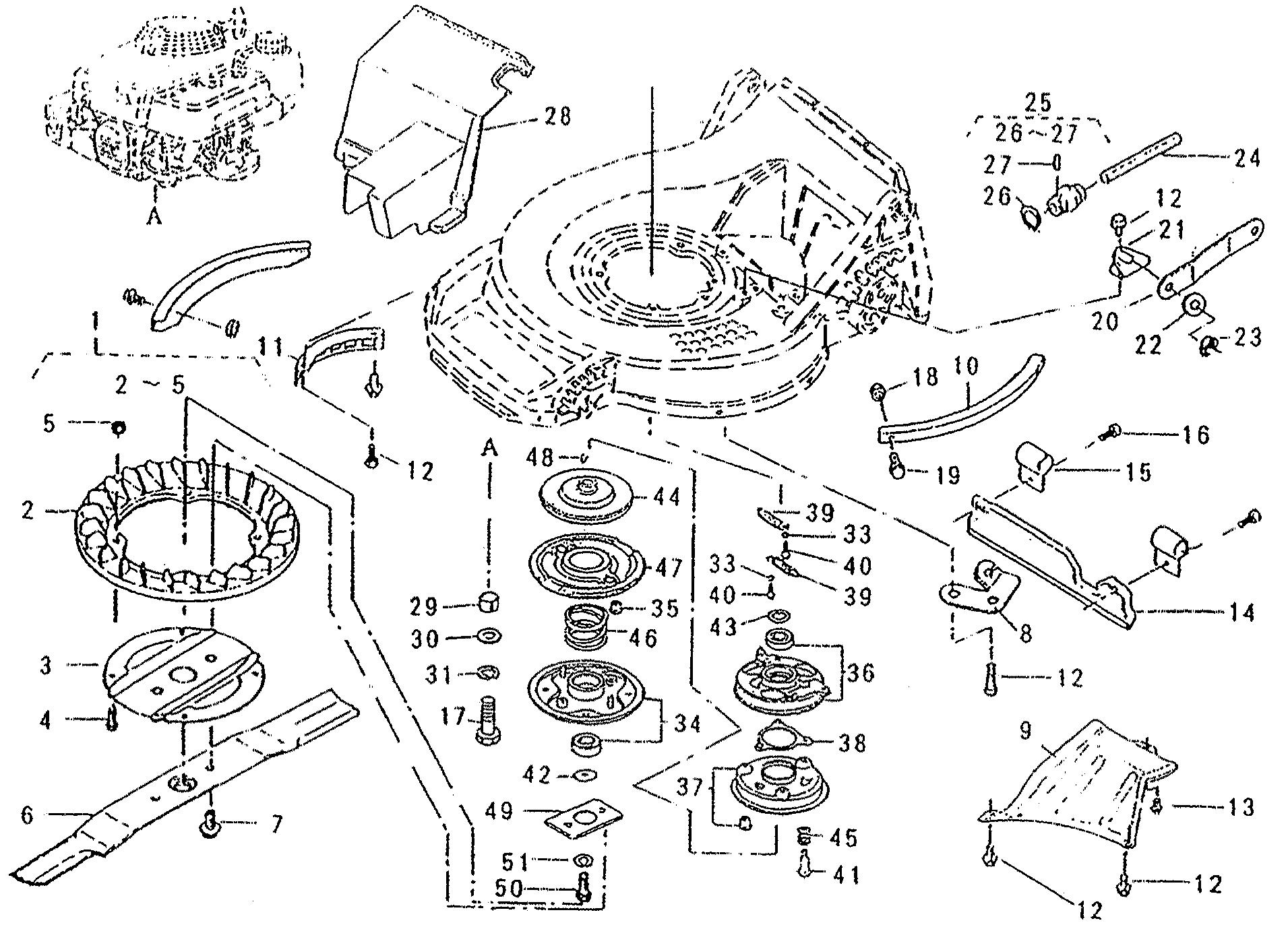

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG761_0112

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71082-110 FAN ASS'Y £49.48 Add
002 51125-103 FAN £18.41 Add
003 11102-151 HOLDER £20.72 Add
004 335L-0620 FLANGE BOLT M6x20 £3.08 Add
005 569L-0600 FLANGE NYLON NUT M6 £2.85 Add
006 91014-205 BLADE £29.66 Add
007 31057-197 HEXAGON BOLT £3.35 Add
008 51002-113 WIRE HOLDER £5.66 Add
009 36065-300 COVER £30.36 Add
010 51090-117-09 PROTECTOR £8.54 Add
011 36065-180 COVER £9.42 Add
012 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.39 Add
013 342J-0610 FLANGE BOLT TAPPING M6x10 N/A POA
014 36046-118 SAFETY GUARD £18.46 Add
015 11012-126 HANGER BAND £6.90 Add
016 335L0616 FLANGE BOLT £1.93 Add
017 31057-243 BOLT £2.32 Add
018 512L-0600 HEXAGON NUT N/A POA
019 335L-0610 FLANGE BOLT M6x10 N/A POA
020 91049-116 CONNECTOR £5.96 Add
021 11006-113 STAY C.P. £11.53 Add
022 611L-1000 WASHER M10 N/A POA
023 816V-0800 E-SNAP RING N/A POA
024 64014-222 SHAFT £11.68 Add
025 91097-101 UNIVERSAL JOINT £27.64 Add
026 812V-2000 C-SNAP RING FOR SHAFT £1.88 Add
027 717B0418 PARALLEL PIN £2.42 Add
028 36065-397 COVER 36065-299 £21.04 Add
029 61024-142 SPACER £2.13 Add
030 613L-0800 PLAIN WASHER M8 N/A POA
031 661L-0800 SPRING LOCK WASHER M8 N/A POA
033 L19512883000 FAN COLLAR N/A POA
034 L72600VA4010 BLADE HOLDER ASS'Y N/A POA
035 L72613VA4000 BLADE HOLDER BUSH N/A POA
036 L75090VA4020 BALL CONTROL PLATE N/A POA
037 L75100VA4010 BRAKE C.P. N/A POA
038 L75110VA4000 BALL RETAINER N/A POA
039 L75182VA3J001 CLUTCH RETURN SPRING N/A POA
040 L90014952000 FLANGE BOLT N/A POA
041 L90021VA4000 SPECIAL BOLT N/A POA
042 L90409952000 WASHER N/A POA
043 L90501952010 THRUST WASHER N/A POA
044 L75130VA4000 DRIVE DISK N/A POA
045 L75132VA4000 BRAKE HOLDER SPRING N/A POA
046 L75183VA3J000 CLUTCH SPRING N/A POA
047 L75150VA3J01 DRIVEN DISK C.P. N/A POA
048 L9440116150 WOODRUFF KEY N/A POA
049 61024-169 SPACER £12.44 Add
050 31057-196 HEXAGON BOLT £3.57 Add
051 671V1000 CONICAL SPRING WASHER £1.93 Add
