FG762_0103

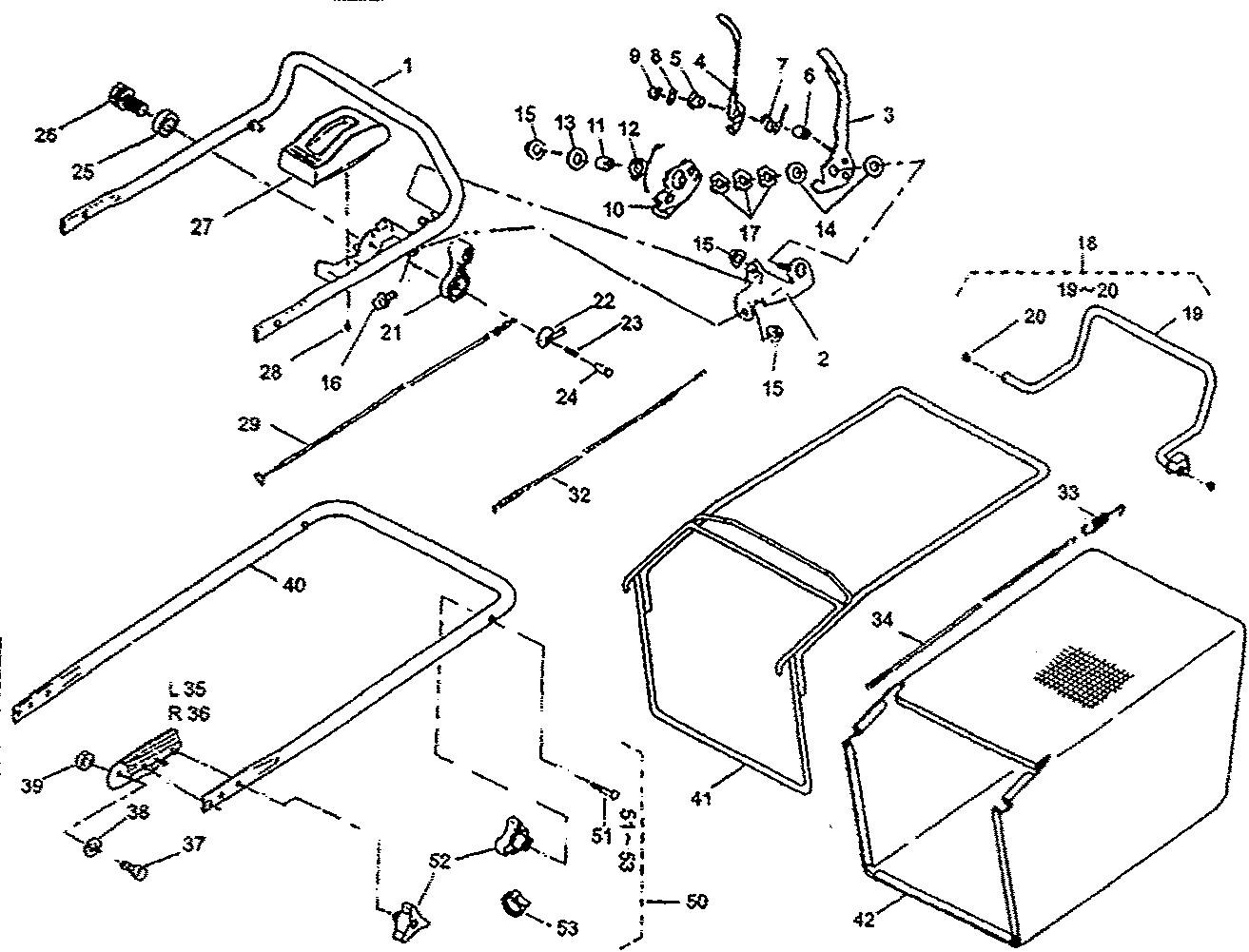

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG762_0103

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51027-242 HANDLE 51027-222 £120.17 Add
002 11113-396-09 STAY £15.65 Add
003 11095-160-09 LEVER £36.69 Add
004 11095-161-09 LEVER £23.73 Add
005 76007-131 BUSH £1.84 Add
006 61024-206 SPACER £3.86 Add
007 88013-334 SPRING N/A POA
008 68036-138 WASHER £2.28 Add
009 563L-0600 U-HEXAGON CAP NUT £2.94 Add
010 11109-108 LINK £23.73 Add
011 61024-207 SPACER £2.20 Add
012 66013-335 SPRING N/A POA
013 68036-262 WASHER £2.49 Add
014 68036-200 WASHER £2.35 Add
015 569L-0800 FLANGE NYLON NUT £2.85 Add
016 335L-0820 FLANGE BOLT £4.39 Add
017 664J-1600 WAVE SPRING WASHER N/A POA
018 71161-111-09 LEVER ASSY £51.61 Add
020 76007-131 BUSH £1.84 Add
021 91010-169 THROTTLE LEVER £14.16 Add
022 61003-113 THRUST PLATE £3.72 Add
023 68013-356 SPRING £3.57 Add
024 310S8-168 HEXAGON NUT N/A POA
025 68036-125 WASHER £1.58 Add
026 318L-0612 (+)HEXAGON BOLT(SW) N/A POA
027 71900-797 COVER ASSY £26.29 Add
028 470L-0514 (+)TAPPING SCREW N/A POA
029 91001-233 THROTTLE WIRE £14.95 Add
032 91003-144 CONTROL CABLE £15.91 Add
033 68013-183 SPRING £8.36 Add
034 91003-165 CONTROL CABLE £26.06 Add
035 51116-145 HANDLE BRACKET LEFT £26.74 Add
036 51116-146 HANDLE BRACKET £34.49 Add
037 312M-0830 HEXAGON BOLT(SW) £3.74 Add
038 68036-101 WASHER £2.68 Add
039 512L-0800 HEXAGON NUT N/A POA
040 51027-146 HANDLE £124.13 Add
041 11062-174 FRAME £73.55 Add
042 36096-148 GRASS BAG C.P. (LAWN FLITE) N/A POA
050 71052-119 BOLT SET £34.89 Add
051 31057-134 BOLT £3.83 Add
052 36061-118 KNOB £6.41 Add
063 68028-103 WIRE BAND £2.28 Add
