553HWS004-46014-251

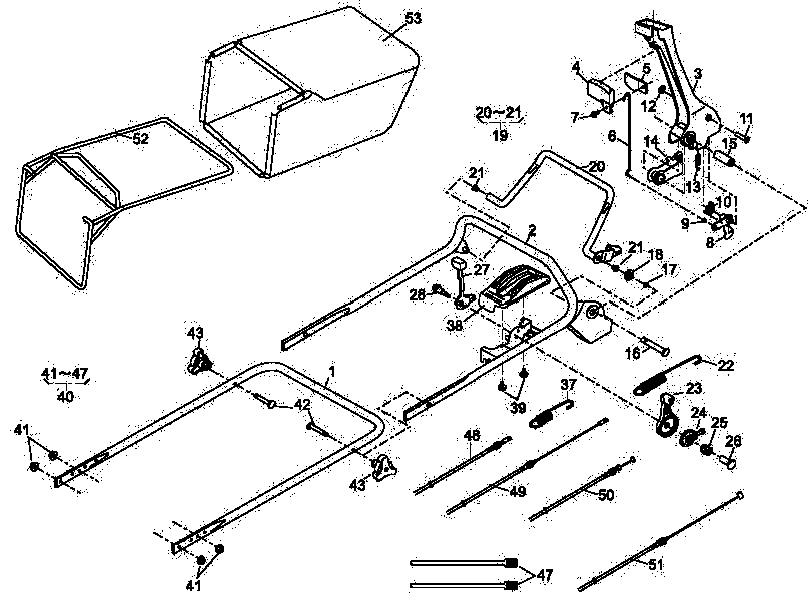

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

553HWS004-46014-251

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51027-254 LOWER HANDLE £163.19 Add
002 51027-255 HANDLE £146.01 Add
003 11095-172 LEVER £33.54 Add
004 36110-102 BUTTON £5.04 Add
005 11049-109 SIDE PLATE £5.32 Add
006 64014-336 SHAFT £5.74 Add
007 335N-0612 FLANGEBOLT N/A POA
008 71203-135 ARM C.P. £9.66 Add
009 76007-183 BUSH £2.81 Add
010 68013-371 SPRING £3.56 Add
011 31056-127 GIB-HEADED PIN £2.08 Add
012 576V-0600 PUSH NUT N/A POA
013 68013-372 SPRING £3.56 Add
014 11109-111 LINK £18.23 Add
015 61023-190 SLEEVE £4.64 Add
016 64014-337 SHAFT £3.58 Add
017 812V-0800 C-SNAP RING FOR SHAFT N/A POA
018 613L-0800 PLAIN WASHER M8 N/A POA
019 71161-114-09 LEVER ASSY £34.56 Add
020 71161-114-09 LEVER ASSY £34.56 Add
021 76007-131 BUSH £2.15 Add
022 68013-391 SPRING £10.88 Add
023 91010-169 THROTTLE LEVER £15.71 Add
024 6103-113 THRUST PLATE N/A POA
025 68013-356 SPRING £3.31 Add
026 31058-168 NUT £4.77 Add
027 11095-117 LEVER (RED) £22.71 Add
028 31062-109 PRE-COAT LOCK BOLT £3.89 Add
037 68013-161 SPRING MOTION DRIVE £6.81 Add
038 71900-796 COVER ASSY £23.78 Add
039 470L-0514 (+)TAPPING SCREW N/A POA
040 71900-895 BOLT SET N/A POA
041 569L-0800 FLANGE NYLON NUT £3.30 Add
042 31057-134 BOLT £4.55 Add
043 36061-118 KNOB £7.63 Add
047 68020-103 WIRE BAND N/A POA
048 91003-125 ENGINE SPEED CABLE £16.75 Add
049 91003-189 CONTROL CABLE ( MOTION DRIVE ) £32.87 Add
050 91001-329 THROTTLE WIRE(GXV120/GXV160) £18.86 Add
051 91003-169 CONTROL CABLE ( BBC ) £25.08 Add
052 11062-178 FRAME C.P. £85.70 Add
053 36098-147 GRASS BAG (LAWNFLITE) £60.45 Add
