FG763_0102

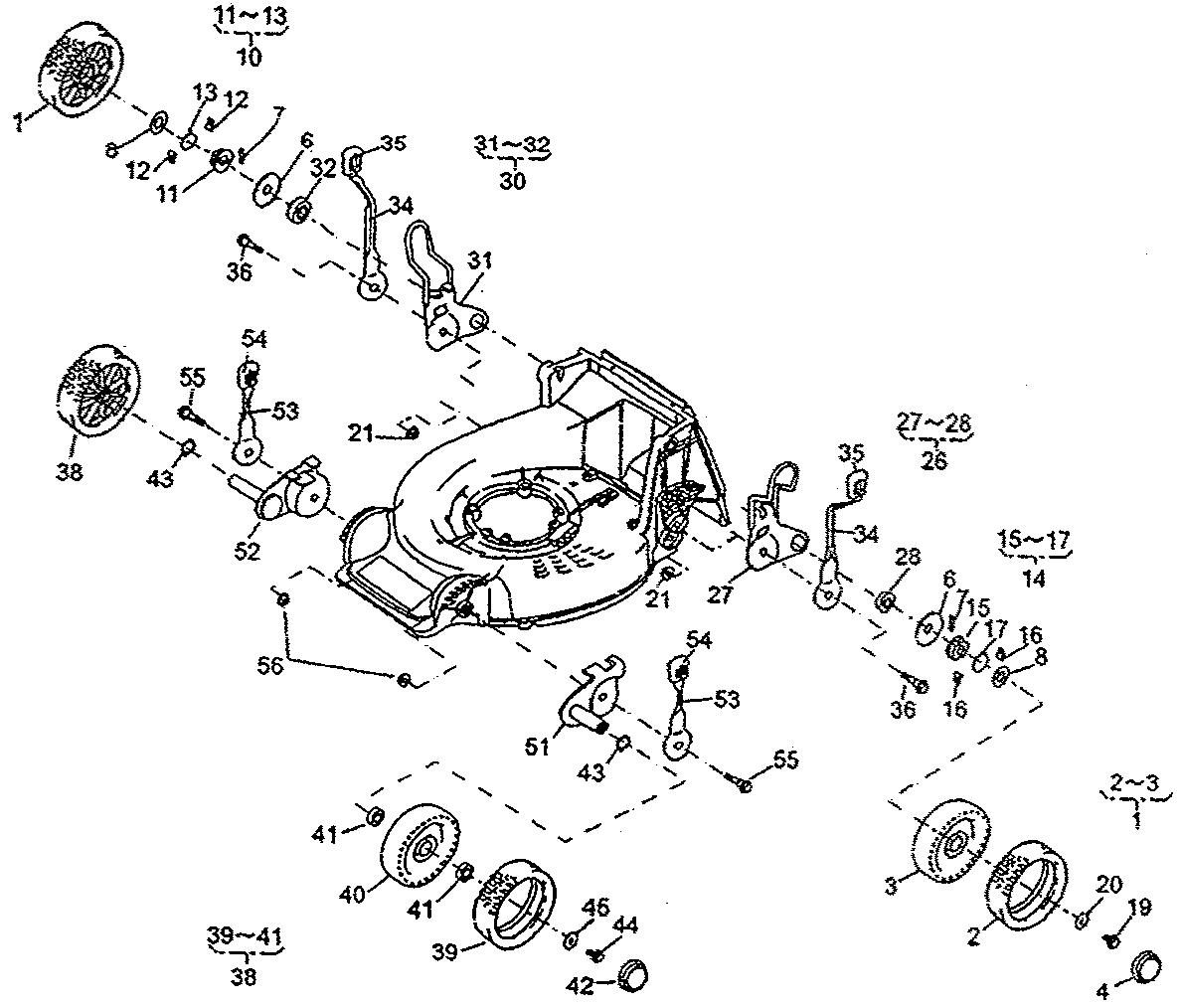

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	71041-112	WHEEL ASS'Y	£49.41	Add
002	91088-106	TIRE	£201.73	Add
003	36107-101	WHEEL	£21.78	Add
004	36070-110	CAP	£3.82	Add
006	61003-112	THRUST PLATE	£5.99	Add
007	31034-137	PIN	£3.32	Add
008	68036-146	WASHER	£2.00	Add
010	71158-104	RATCHET ASS'Y	£14.47	Add
011	11102-235	HOLDER	£9.62	Add
012	31034-170	PIN	£3.33	Add
013	68013-266	SPRING	£3.80	Add
014	71158-103	RATCHET ASS'Y 71158-102	£14.47	Add
016	11102-235	HOLDER	£9.62	Add
016	31034-170	PIN	£3.33	Add
017	68013-266	SPRING	£3.80	Add
019	31057-181	HEXAGON BOLT	£2.55	Add
020	68036-101	WASHER	£2.50	Add
021	589L-0800	FLANGE NYLON NUT	N/A	POA
026	71122-101	ADJUSTER ASS'Y	£24.59	Add
027	11142-104	ADJUSTER	£19.47	Add
028	945L-349	BEARING	N/A	POA
030	71122-102	ADJUSTER ASS'Y	£24.59	Add
031	11142-105	ADJUSTER (RED)	£19.47	Add
032	945L-349	BEARING	N/A	POA
034	11150-102-09	ADJUT.LEVER	£12.66	Add
035	36061-121	KNOB	£5.62	Add
036	31057-260	HEXAGON BOLT	£4.91	Add
038	71041-103	WHEEL ASSY	£39.83	Add
039	91086-106	TIRE 91086-102	£25.53	Add
040	36107-102	FRONT WHEEL WITHOUT TYRE	£23.66	Add
041	932L0696	BEARING 932L-0696	£4.95	Add
042	36070-110	CAP	£3.82	Add
043	664V-0626	WAVE SPRING WASHER	£2.42	Add
044	31057-181	HEXAGON BOLT	£2.55	Add
045	68036-101	WASHER	£2.50	Add
051	11142-112	ADJUSTER	N/A	POA
052	11142-124	ADJUSTER	£20.12	Add
053	11150-107-09	ADJUSTING LEVER	£15.17	Add
054	36061-121	KNOB	£5.62	Add
055	31057-260	HEXAGON BOLT	£4.91	Add
056	569L-0800	FLANGE NYLON NUT	£3.30	Add
