FG763_0117

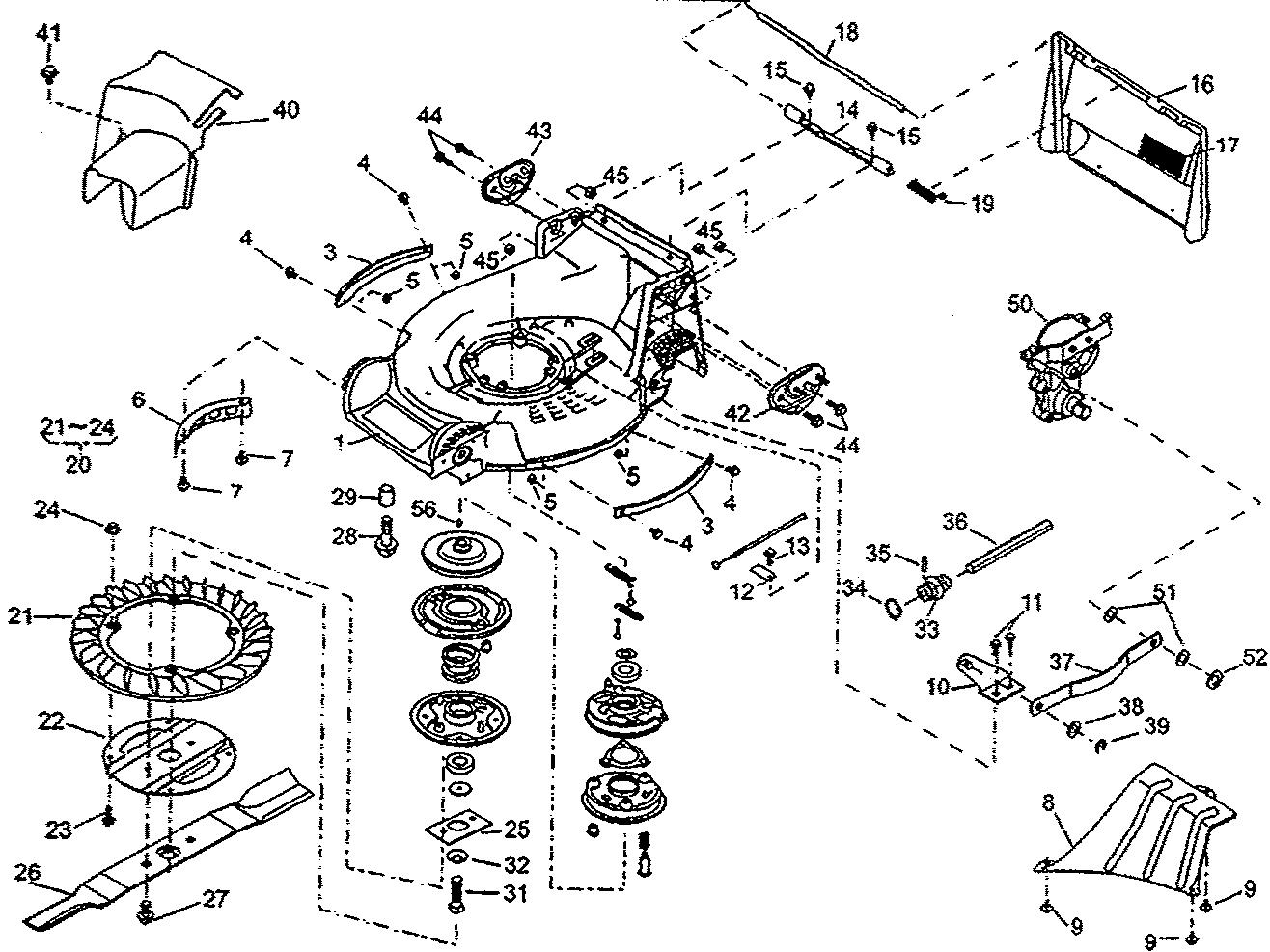

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG763_0117

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51043-151-42 DECK ASSY (553 PRO) £367.70 Add
003 51090-117-09 PROTECTOR £8.54 Add
004 335L0616 FLANGE BOLT £1.93 Add
005 512L-0600 HEXAGON NUT N/A POA
006 36065-180 COVER £9.42 Add
007 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.39 Add
008 36065-462-42 COVER £40.10 Add
009 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.39 Add
010 11006-155 STAY C.P. £6.41 Add
011 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.39 Add
012 11113-407 STAY £4.16 Add
013 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.39 Add
014 11113-292 STAY £7.52 Add
015 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.39 Add
016 36068-196-48 GUARD N/A POA
017 36080-149 RUBBER SHEET £3.86 Add
018 64014-324 SHAFT £4.82 Add
019 68013-336 SPRING £6.41 Add
020 71082-111 FAN ASSY £61.78 Add
021 51125-103 FAN £18.41 Add
022 11102-151 HOLDER £20.72 Add
023 31062-169 PRE-COAT LOCK BOLT £2.65 Add
024 579L-0600 FLANGE NUT N/A POA
025 61024-208 SPACER £12.18 Add
026 91014-205 BLADE £29.66 Add
027 31057-197 HEXAGON BOLT £3.35 Add
028 31057-243 BOLT £2.32 Add
029 61024-142 SPACER £2.13 Add
030 71067-106 BRAKE ASSY £398.52 Add
031 31057-196 HEXAGON BOLT £3.57 Add
032 671V1000 CONICAL SPRING WASHER £1.93 Add
033 91097-101 UNIVERSAL JOINT £27.64 Add
034 812V-2000 C-SNAP RING FOR SHAFT £1.88 Add
035 7178-0418 PARALLEL PIN N/A POA
036 64014-359 SHAFT £5.03 Add
037 91049-133 CONNECTOR £8.97 Add
038 68036-280 WASHER £2.28 Add
039 816V-0800 E-SNAP RING N/A POA
040 36065-438 COVER £48.57 Add
041 342L-0616 FLANGE BOLT TAPPING £3.67 Add
042 51116-149 HANDLE BRACKET(L) £27.95 Add
043 51116-150 HANDLE BRACKET(R) £40.08 Add
044 31057-255 BOLT £2.11 Add
045 512L-0800 HEXAGON NUT N/A POA
050 71008-369 GEAR CASE ASSY £557.91 Add
051 68001-110 FIBER WASHER £2.28 Add
052 576V-1000 PUSH NUT N/A POA
055 122039 ENGINE.HONDA GXV160H2-SFL1-R280 N/A POA
