448KJW07_46014-307-01

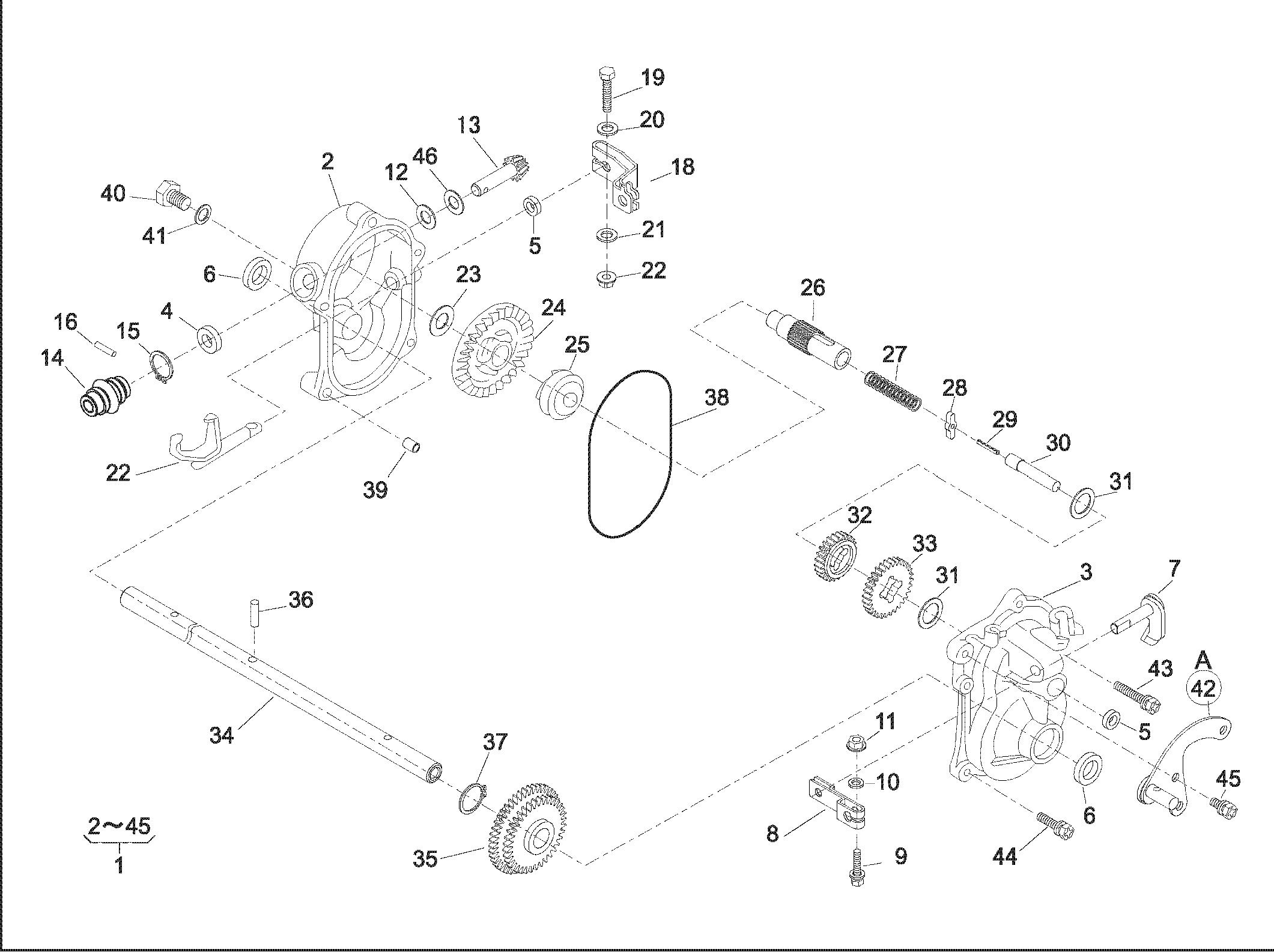

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

448KJW07_46014-307-01

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71008-326 GEAR CASE ASSY £349.34 Add
002 51001-195 GEAR CASE £70.61 Add
003 51001-196 GEAR CASE £70.61 Add
004 61002-161 OIL SEAL £3.19 Add
005 61002-162 OIL SEAL £2.42 Add
006 61002-163 OIL SEAL £2.73 Add
007 64024-104 SHIFTER SHAFT £7.09 Add
008 11104-119 ARM (RED) £5.61 Add
009 320L-0525 (HEXAGON BOLT(W/PW) M5x25 (OBSOLETE) N/A POA
010 611L-0500 PLAIN WASHER M5 N/A POA
011 571L-0500 FLANGE NUT M5 N/A POA
012 61003-109 THRUST PLATE £2.55 Add
013 71902-194 PINION £21.05 Add
014 91097-101 UNIVERSAL JOINT £33.14 Add
015 812V-2000 C-SNAP RING FOR SHAFT £2.17 Add
016 717B0418 PARALLEL PIN £2.86 Add
017 11097-106 FOUR WHEEL 11097-120 , ROLLER 11097-119 N/A POA
018 11104-137 ARM £8.39 Add
019 311M-0630 (+)HEXAGON BOLT (OBSOLETE) N/A POA
020 611L0600 PLAIN WASHER 611L-0600 £1.66 Add
021 613L-0600 PLAIN WASHER (OBSOLETE) N/A POA
022 571L-0600 HEXAGON NUT FLANGE (OBSOLETE) N/A POA
023 61024-117 SPACER £2.42 Add
024 78001-162 BEVEL GEAR £41.84 Add
025 11129-107 CLUTCH £24.33 Add
026 64014-236 SHAFT £33.08 Add
027 68013-262 SPRING £3.32 Add
028 31034-199 PIN £5.28 Add
029 736U-0320 SPRING PIN N/A POA
030 64014-235 SHAFT £7.09 Add
031 61024-118 SPACER £2.98 Add
032 78004-156 GEAR £20.65 Add
033 78004-155 GEAR £15.92 Add
034 64014-185 SHAFT £30.28 Add
035 78012-107 GEAR CP. £43.77 Add
036 31034-150 PIN £3.31 Add
037 812V-2200 C SNAP RING (RED) £3.24 Add
038 214B-11000 O-RING £5.64 Add
039 11083-201 COLLAR £3.31 Add
040 31057-262 HEXAGON BOLT £2.04 Add
041 68001-110 FIBER WASHER £2.15 Add
042 11006-165 STAY C.P. £11.58 Add
043 315L-0625 (+)HEXAGON BOLT(SW.PW) (OBSOLETE) N/A POA
044 315L-0635 (+)HEXAGON BOLT(W/SW.PW) M6x35 N/A POA
045 318L-0612 (+)HEXAGON BOLT(SW) N/A POA
046 68007-132 SHIM £1.89 Add
