SHK553HWS07_46014-503-00

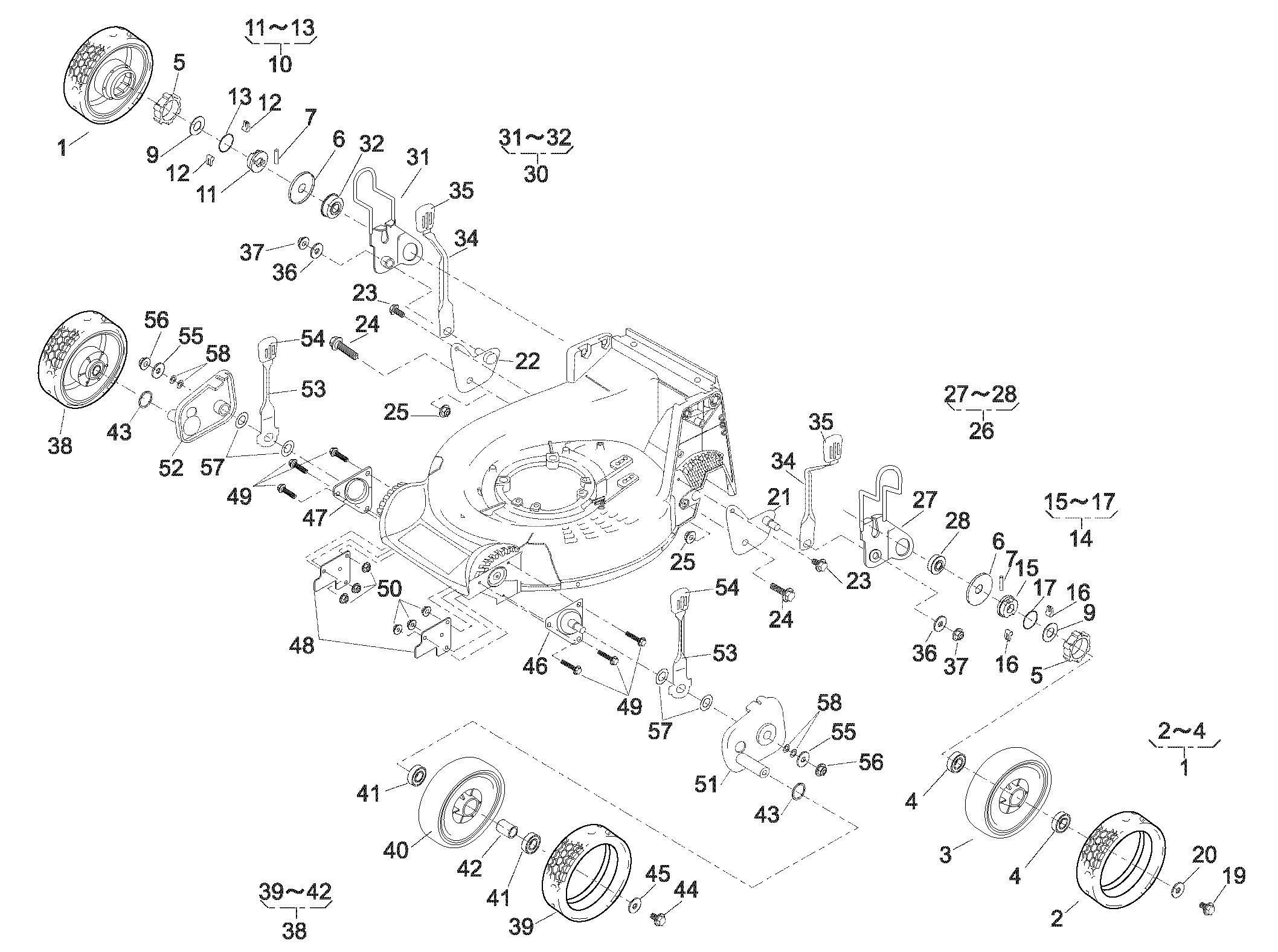

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

SHK553HWS07_46014-503-00

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71041-136 WHEEL ASS'Y (A.W.) £107.27 Add
002 91086-113 TIRE £33.55 Add
004 916B-6002 BEARING N/A POA
005 11086-119 STOPPER £10.79 Add
006 61003-112 THRUST PLATE £5.03 Add
007 31034-137 PIN £2.81 Add
009 68036-146 WASHER £2.10 Add
010 71158-104 RATCHET ASS'Y £12.10 Add
011 11102-235 HOLDER £9.25 Add
012 31034-170 PIN £2.82 Add
013 68013-266 SPRING £3.20 Add
014 71158-103 RATCHET ASS'Y 71158-102 N/A POA
015 11102-235 HOLDER £9.25 Add
016 31034-170 PIN £2.82 Add
017 68013-266 SPRING £3.20 Add
019 31057-181 HEXAGON BOLT £2.17 Add
020 68036-101 WASHER £2.68 Add
021 11006-151 STAY C.P. £9.56 Add
022 11006-152 STAY £9.62 Add
023 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.39 Add
024 31057-255 BOLT £2.11 Add
025 584L-0800 U-FLANGE NUT N/A POA
026 71122-112 ADJUSTER ASSY LH £29.11 Add
027 11142-131 ADJUSTER(RL) £14.24 Add
028 945L-0349 BEARING £10.67 Add
030 71122-113 ADJUSTER ASSY RH £29.11 Add
031 11142-132 ADJUSTSRIRR) £37.50 Add
032 945L-0349 BEARING £10.67 Add
034 11150-105-09 ADJUST LEVER £13.95 Add
035 36061-121 KNOB £4.72 Add
036 613L-0800 PLAIN WASHER M8 N/A POA
037 569L-0800 FLANGE NYLON NUT £2.85 Add
038 71041-135 WHEEL ASS'Y (A.W.) £111.64 Add
039 91086-113 TIRE £33.55 Add
041 916B-6002 BEARING N/A POA
042 11083-332 COLLAR £6.71 Add
043 51113-119 RING £2.03 Add
044 31057-181 HEXAGON BOLT £2.17 Add
045 68036-101 WASHER £2.68 Add
046 11006-153 STAYC.P.(FL) £14.56 Add
047 11006-154 STAY C. P £11.05 Add
048 11113-409 STAY £13.67 Add
049 335L-0625 FLANSEBOLT N/A POA
050 569L-0600 FLANGE NYLON NUT M6 £2.85 Add
051 11142-129 ADJUSTER £28.99 Add
052 11142-130 ADJUSTER RIGHT £24.94 Add
053 11150-109-09 ADJUSTER LEVER £10.13 Add
054 36061-121 KNOB £4.72 Add
055 68036-101 WASHER £2.68 Add
056 584L-0800 U-FLANGE NUT N/A POA
057 68013-393 SPRING £3.76 Add
058 68007-105 SHIM £2.42 Add
