SHK553HRSP07_46014-512-00

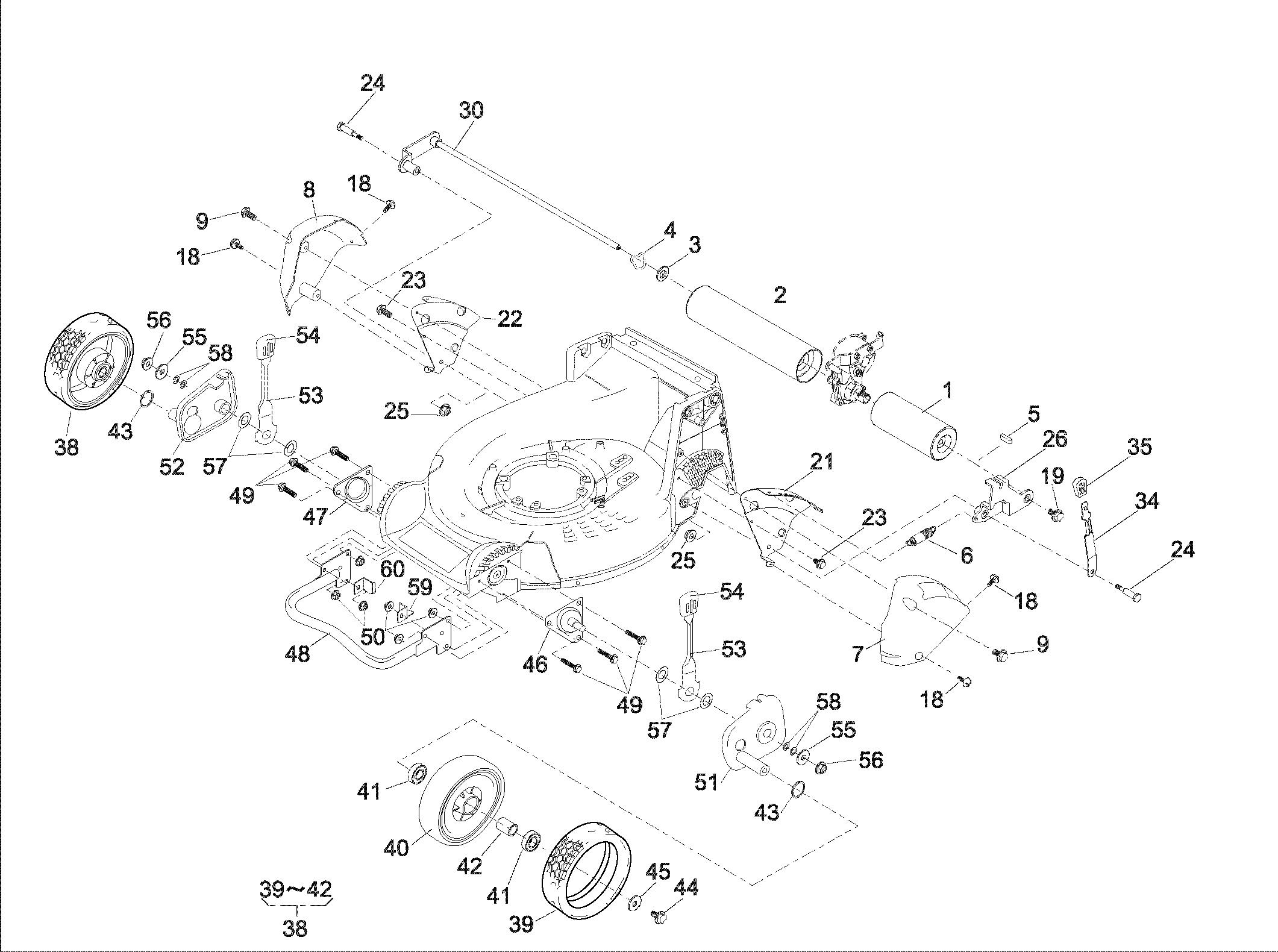

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

SHK553HRSP07_46014-512-00

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 36099-136 ROLLER £122.19 Add
002 36099-137 ROLLER 36099-103 £113.63 Add
003 61024-118 SPACER £2.98 Add
004 664V0016 WAVE SPRING WASHER £1.80 Add
005 91020-131 KEY £2.76 Add
006 68013-265 SPRING £10.48 Add
007 36065-444 COVER £28.46 Add
008 36065-445 COVER £30.24 Add
009 342L-0616 FLANGE BOLT TAPPING £3.39 Add
018 475L-0516 (+)TAPPING SCREW £2.08 Add
019 31057-181 HEXAGON BOLT £2.55 Add
021 11113-411 STAY £26.91 Add
022 11113-412 STAY £23.78 Add
023 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
024 31057-261 HEXAGON BOLT £14.64 Add
025 569L-0800 FLANGE NYLON NUT £3.30 Add
026 11142-136 ADJUSTER £43.08 Add
030 11142-137 ADJUSTER £62.00 Add
034 11150-108-09 ADJUSTER £10.75 Add
035 36061-121 KNOB £5.62 Add
038 71041-135 WHEEL ASS'Y (A.W.) £100.70 Add
039 91086-113 TIRE £30.30 Add
041 916B-6002 BEARING N/A POA
042 11083-332 COLLAR £6.12 Add
043 51113-119 RING £1.89 Add
044 31057-181 HEXAGON BOLT £2.55 Add
045 68036-101 WASHER £2.50 Add
046 11008-153 STAYC.P.(FL) N/A POA
047 71950-274 STAY C.P £21.63 Add
048 11153-112 BUMPER £45.93 Add
049 335L-0625 FLANSEBOLT N/A POA
050 569L-0600 FLANGE NYLON NUT M6 £2.66 Add
051 11142-129 ADJUSTER £26.20 Add
052 11142-130 ADJUSTER RIGHT £29.89 Add
053 11150-109-09 ADJUSTER LEVER £12.12 Add
054 36061-121 KNOB £5.62 Add
055 68036-101 WASHER £2.50 Add
056 584L-0800 U-FLANGE NUT N/A POA
057 68013-393 SPRING £3.48 Add
058 68007-105 SHIM £2.27 Add
059 11113-418 STAY (L) £7.06 Add
060 11113-417 STAY (R) £7.06 Add
