KAAZ08_S448KJW_0002

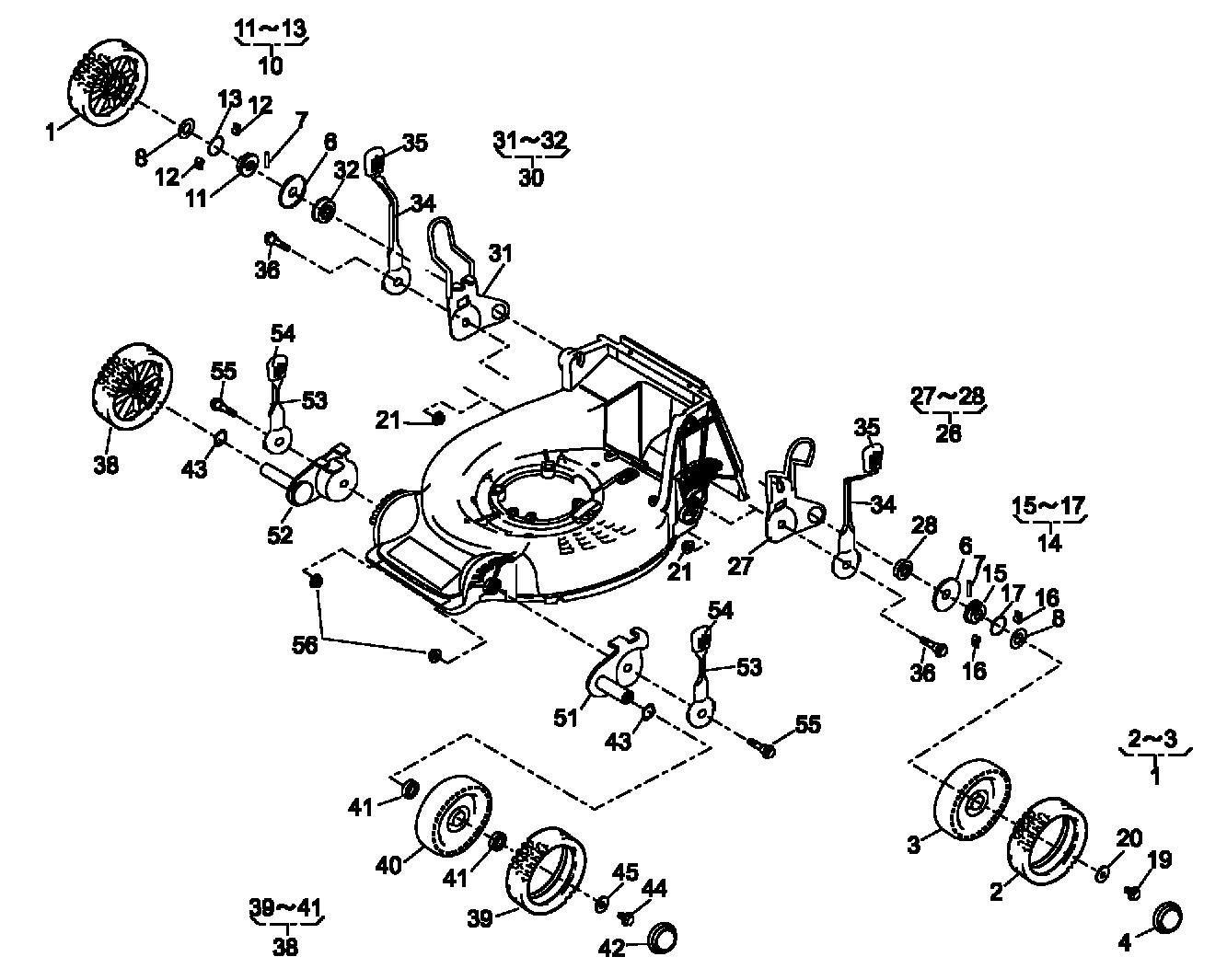

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

KAAZ08_S448KJW_0002

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71041-112 WHEEL ASS'Y £49.41 Add
002 91086-106 TIRE 91086-102 £25.53 Add
003 36107-101 WHEEL £21.78 Add
004 36070-110 CAP £3.82 Add
006 61003-112 THRUST PLATE £5.99 Add
007 31034-137 PIN £3.32 Add
008 68036-146 WASHER £2.00 Add
010 71158-104 RATCHET ASS'Y £14.47 Add
011 11102-235 HOLDER £9.62 Add
012 31034-170 PIN £3.33 Add
013 68013-266 SPRING £3.80 Add
014 71158-103 RATCHET ASS'Y 71158-102 £14.47 Add
015 11102-235 HOLDER £9.62 Add
016 31034-170 PIN £3.33 Add
017 68013-266 SPRING £3.80 Add
019 31057-181 HEXAGON BOLT £2.55 Add
020 68036-101 WASHER £2.50 Add
021 569L-0800 FLANGE NYLON NUT £3.30 Add
026 71122-101 ADJUSTER ASS'Y £24.59 Add
027 11142-104 ADJUSTER £19.47 Add
028 945L-0349 BEARING £12.77 Add
030 71122-102 ADJUSTER ASS'Y £24.59 Add
031 11142-105 ADJUSTER (RED) £19.47 Add
032 945L-0349 BEARING £12.77 Add
034 11150-102-09 ADJUT.LEVER £12.66 Add
035 36061-121 KNOB £5.62 Add
036 31057-260 HEXAGON BOLT £4.91 Add
038 71041-103 WHEEL ASSY £39.83 Add
039 91086-106 TIRE 91086-102 £25.53 Add
040 36107-102 FRONT WHEEL WITHOUT TYRE £23.66 Add
041 932L0696 BEARING 932L-0696 £4.95 Add
042 36070-110 CAP £3.82 Add
043 664V-0626 WAVE SPRING WASHER £2.42 Add
044 31057-181 HEXAGON BOLT £2.55 Add
045 68036-101 WASHER £2.50 Add
051 11142-112 ADJUSTER N/A POA
052 11142-124 ADJUSTER £20.12 Add
053 11150-107-09 ADJUSTING LEVER £15.17 Add
054 36061-121 KNOB £5.62 Add
055 31057-260 HEXAGON BOLT £4.91 Add
056 569L-0800 FLANGE NYLON NUT £3.30 Add
