LM_ALROL_PRO_2012

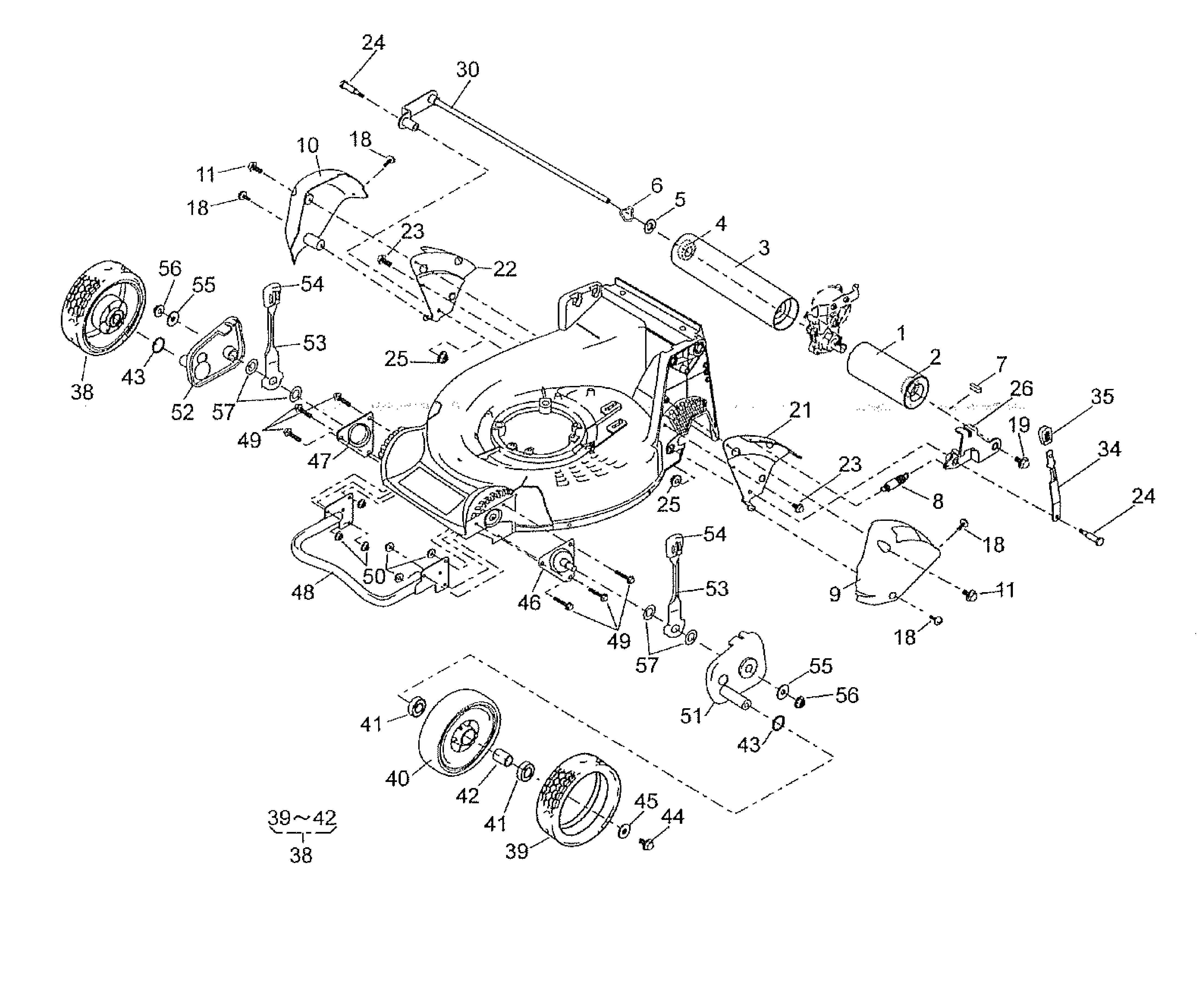

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

LM_ALROL_PRO_2012

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 36099-136 ROLLER £101.77 Add
002 15B6202 BEARING (6202DD) N/A POA
003 36099-137 ROLLER 36099-103 £106.11 Add
004 15B6202 BEARING (6202DD) N/A POA
005 31024-118 SPACER N/A POA
006 664V0016 WAVE SPRING WASHER £1.54 Add
007 91020-131 KEY £2.34 Add
008 68013-265 SPRING £11.53 Add
009 36065-444 COVER £31.48 Add
010 36065-445 COVER £33.47 Add
011 342L0616 FLANGE BOLT TAPPING £2.79 Add
018 475L0516 (+)TAPPING SCREW £1.89 Add
019 31057-282 HEXAGON BOLT £5.42 Add
021 11113-411 STAY(RL) £29.75 Add
022 11113-412 STAY(RR) £26.29 Add
023 342L0612 FLANGE BOLT TAPPING £2.79 Add
024 31057-261 HEXAGON BOLT £12.23 Add
025 569L0800 FLANGE NYLON NUT £2.51 Add
026 11142-136 ADJUSTER(L) £47.71 Add
030 11142-137 ADJUSTER £51.66 Add
034 11150-108-09 ADJUSTER £9.00 Add
035 36061-121 KNOB £4.72 Add
038 71041-135 WHEEL ASS'Y (A.W.) £111.64 Add
039 9108B6113 TIRE N/A POA
041 916B6002 BEARING £11.52 Add
042 11083-332 COLLAR £6.71 Add
043 51113-119 RING £2.03 Add
044 31057-181 HEXAGON BOLT £2.17 Add
045 68036-101 WASHER £2.68 Add
046 11006-153 STAYC.P.(FL) £14.56 Add
047 11006-154 STAY C. P £11.05 Add
048 11153-112 BUMPER £38.27 Add
049 335L0625 FLANGE BOLT £2.65 Add
050 569L0600 FLANGE NYLON NUT £2.28 Add
051 11142-129 ADJUSTER £28.99 Add
052 11142-130 ADJUSTER RIGHT £24.94 Add
053 11150-109-09 ADJUSTER LEVER £10.13 Add
054 36061-121 KNOB £4.72 Add
055 68036-101 WASHER £2.68 Add
056 584L0800 U-FLANGE NUT £3.08 Add
057 68013-393 SPRING £3.76 Add
