FG482_0040

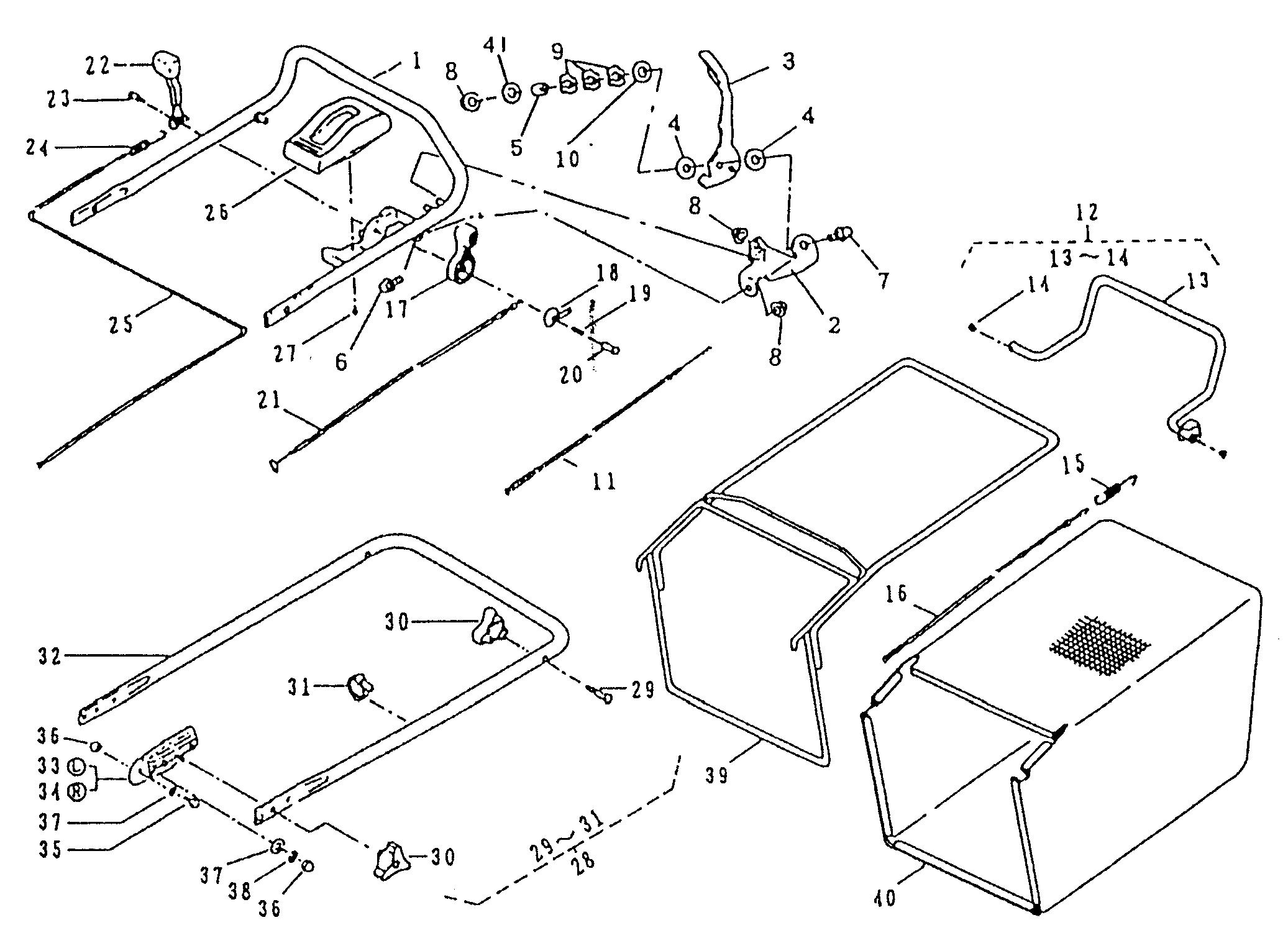

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG482_0040

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51027-242 HANDLE 51027-222 £120.17 Add
002 11113-293-09 STAY £13.61 Add
003 11095-138-09 LEVER £33.06 Add
004 68036-200 WASHER £2.35 Add
005 61024-196 SPACER £4.16 Add
006 335L-0820 FLANGE BOLT £4.39 Add
007 335L-0830 FLANGE BOLT M8x30 N/A POA
008 569L-0800 FLANGE NYLON NUT £2.85 Add
009 664J-1600 WAVE SPRING WASHER N/A POA
010 68036-206 WASHER £3.24 Add
011 91003-144 CONTROL CABLE £15.91 Add
012 71161-114-09 LEVER ASSY £28.81 Add
014 76007-131 BUSH £1.84 Add
015 68013-183 SPRING £8.36 Add
016 91003-140 DRIVE CONTROL CABLE £17.24 Add
017 91010-169 THROTTLE LEVER £14.16 Add
018 61003-113 THRUST PLATE £3.72 Add
019 68013-160 SPRING £3.57 Add
020 31058-107 HEXAGON NUT £7.46 Add
021 91001-233 THROTTLE WIRE £14.95 Add
022 11095-117 LEVER £25.10 Add
023 31062-109 PRE-COAT LOCK BOLT £4.23 Add
024 68013-161 SPRING £5.72 Add
025 91003-125 ENGINE SPEED CABLE £13.98 Add
026 36065-427 COVER 36065-168 N/A POA
027 470L-0514 (+)TAPPING SCREW N/A POA
028 71052-119 BOLT SET £34.89 Add
029 31057-134 BOLT £3.83 Add
030 36061-118 KNOB £6.41 Add
031 68028-103 WIRE BAND £2.28 Add
032 51027-146 HANDLE £124.13 Add
033 51116-112 HANDLE BRACKET £24.05 Add
034 51116-113 HANDLE BRACKET £24.05 Add
035 312L-0825 HEXAGON BOLT(W/SW) M8x25 N/A POA
036 564L-0800 HEXAGON CAP NUT M8 N/A POA
037 68036-101 WASHER £2.68 Add
038 661L-0800 SPRING LOCK WASHER M8 N/A POA
039 11062-112 FRAME C.P. £94.38 Add
040 36098-142 GRASS BAG C.P. £137.06 Add
041 68036-101 WASHER £2.68 Add
