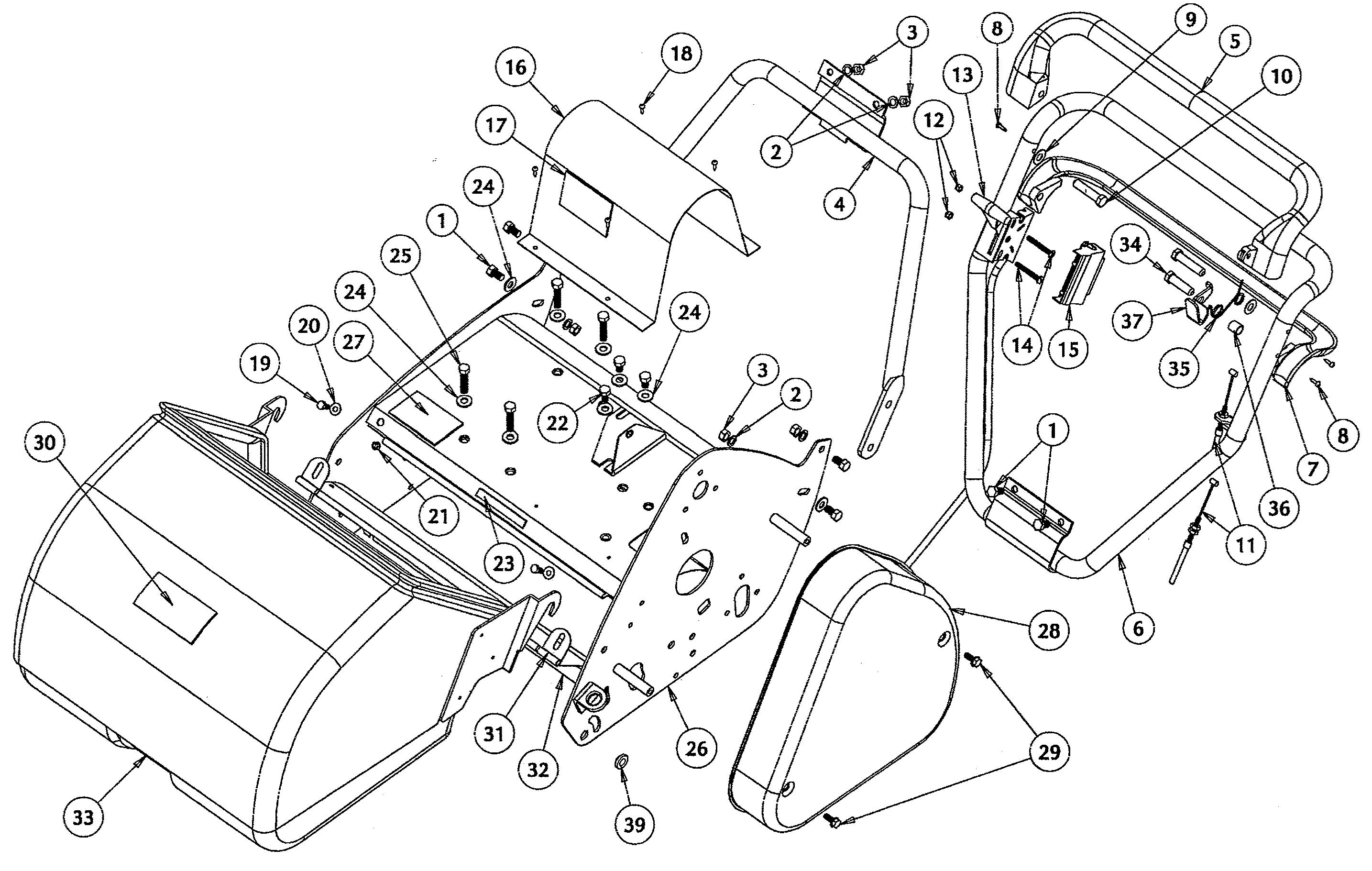

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG768_0101

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FBOPL02 BOLT HT ZP M8X20 SET SCREW £3.31 Add
002 FWAPL58 WASHER SPRING ZPM8 N/A POA
003 FNUPL08 NUTZPM8 N/A POA
004 L1450-150 HANDLE LOWER 400 CHROME £105.77 Add
005 L1050-720B LEVER-CLUTCH UPPER REEL BLK £53.54 Add
006 L1050-705C HANDLEBAR-UPPER OPC CHME £191.97 Add
006 L1050-755 HANDLE-UPPER OPC YELLOW ASSY N/A POA
007 L1050-730B LEVER-CLUTCH LOWER REEL BLK £53.28 Add
008 L0108-027 SCREW TAPTITE M5X12 HEX HD ZP £4.05 Add
009 L1050-715 WASHER-PLASTIC 10 X 20 X 1 £5.85 Add
010 L1050-710Z BOSS-PIVOT LEVER ZP £14.04 Add
011 L1050-700 CABLE-CLUTCH ASSY 1305MM PRE08 £46.89 Add
012 FNLPL05 NUT NYLOC ZP M5 N/A POA
013 L1050-090 THROTTLE CTRL 860MM T-BAR REEL £79.39 Add
014 FSCPL05 SCREW MC ZP PHD POZI M5 X 40 N/A POA
015 L1050-095 THROTTLE CTRL CASE 860MM £14.04 Add
016 L1410-700S COVER-SHAFT 400 SILVER N/A POA
016 L1410-700G COVER-SHAFT 400 PRIMARY GREEN N/A POA
016 L1410-700R COVER-SHAFT 400 RED N/A POA
016 L1410-700M COVER-SHAFT400 RACING GREEN N/A POA
017 L1470-145 DECAL MOWER TD L/M 400 N/A POA
017 L1470-146 DECAL MOWER TD L/M 400 BLACK N/A POA
018 FSCPL08 SCREW ST SS PHD SQUA #6X1/2 £4.05 Add
019 FBOPL03 BOLTZPM6X12SET SCREW N/A POA
020 FWAPL56 WASHER SPRING ZPM6 £3.23 Add
021 FNUPL06 NUT ZP M6 £3.23 Add
022 FBOPL18 BOLT HT ZP M8X16 SET SCREW £4.59 Add
023 L1070-234 DECAL-RAZOR CUT SYSTEM N/A POA
024 FWAPL08 WASHER FLAT ZP M8X19X1.6 N/A POA
025 FBOPL35 BOLT HT ZP M8X35 SET SCREW £8.32 Add
026 L1405-710S FRAME-400 W/A SILVER N/A POA
026 L1405-710G FRAME-400 W/A PRIMARY GREEN N/A POA
026 L1405-710R FRAME-400 W/A RED £286.04 Add
026 L1405-710M FRAME-400 W/A RACING GREEN N/A POA
026 L1105-710S FRAME - SPORT W/A PTD SILVER N/A POA
026 L1105-710M FRAME - SPORT W/A PTD MASPORT N/A POA
027 L1070-230 DECAL-CAUTIONREEL £14.04 Add
028 L1010-705S GUARD-CHAIN SILVER N/A POA
028 L1010-705R GUARD-CHAIN RED £79.07 Add
028 L1010-705G GUARD-CHAIN PRIMARY GREEN N/A POA
028 L1010-705M GUARD-CHAIN RACING GREEN N/A POA
029 L0108-030 SCREW TAPTITE M6X16 HEX HD ZP £6.68 Add
030 L1470-145 DECAL MOWER TD L/M 400 N/A POA
030 L1470-147 DECAL CATCHER 400 WHITE N/A POA
031 L1010-190 TAB-GRASS THROWER SC £23.80 Add
033 L1465-260 CATCHER 400 BLACK COMPLETE £344.03 Add
034 L1050-712Z BOSS-PIVOT LEVER 41.5MM ZP £14.04 Add
035 L1050-709 SPRING LEVERLOCK £5.10 Add
036 L1050-707 SPACER LEVER LOCKZP £5.30 Add
037 L1050-706 LEVER LOCK PTD RED £10.52 Add
039 L1005-178 WASHER KEEPER SIDE PLATE (OBSOLETE) N/A POA
