FG720_0300

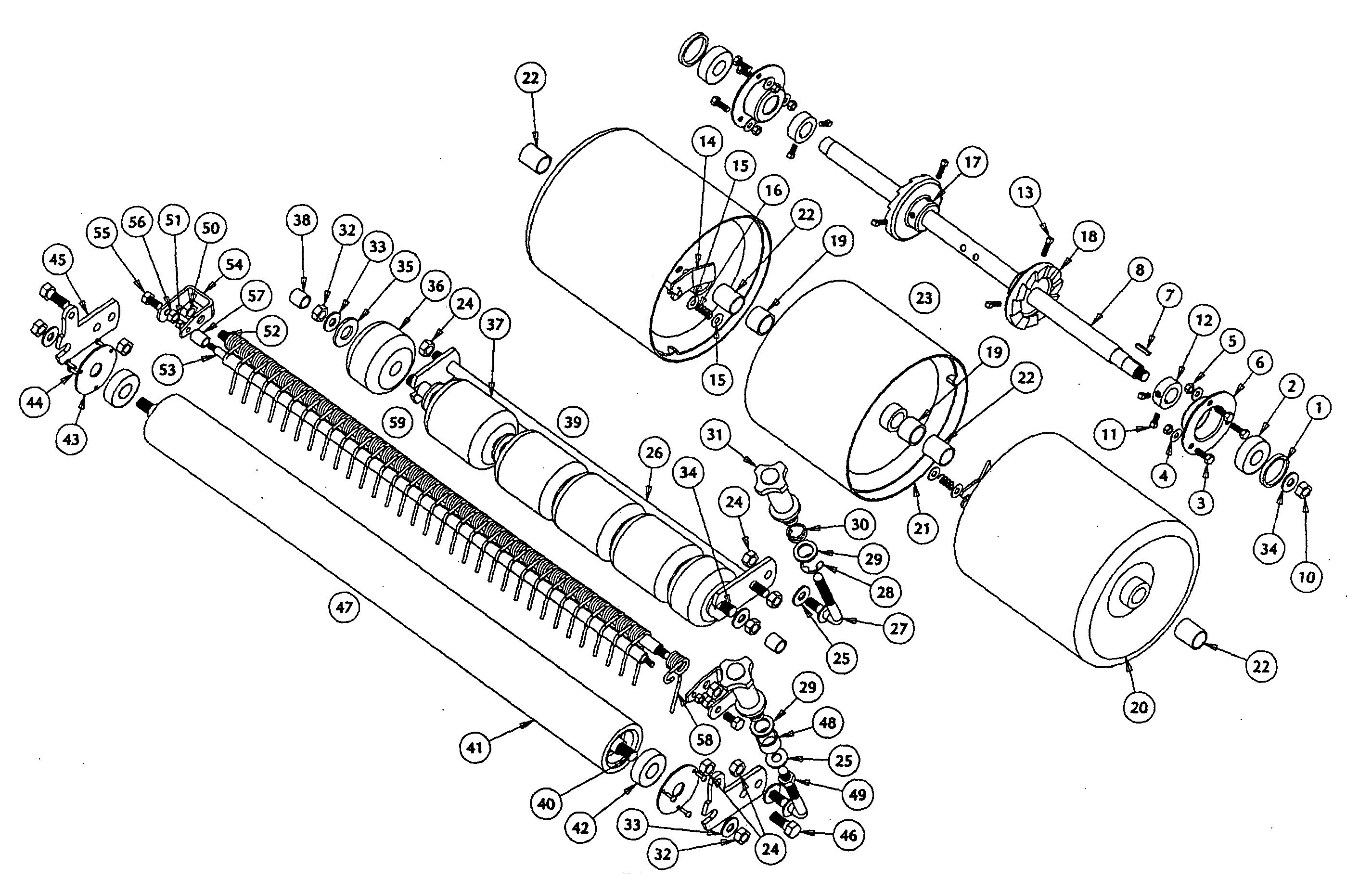

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG720_0300

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 L1060-120 SPACER BEARING PLASTIC HOPE £6.34 Add
002 FBRL080 BEARING 6203-2RS (OBSOLETE) N/A POA
003 FBOPL01 BOLT HT ZP M6X16 SET SCREW £3.23 Add
004 FWAPL56 WASHER SPRING ZPM6 £3.23 Add
005 FNUPL06 NUT ZP M6 £3.23 Add
006 L1060-145 HOUSING BEARING ROUND BLACK £39.11 Add
007 L1030-170 KEY BACK ROLLER DRIVE 1/8X3/8 £7.47 Add
008 L1530-350 SHAFT BACK ROLLER DRILLED 500 £89.44 Add
010 L0110-013 NUT ZP HALF M12 N/A POA
011 L0107-041 SCREW SQHD CUP POINT 5/16X3/8 L0107-040 £6.48 Add
012 L1030-230 COLLAR LOCKING BACK ROLLER ZP £25.07 Add
013 L0107-041 SCREW SQHD CUP POINT 5/16X3/8 L0107-040 £6.48 Add
014 L1030-290 BACK ROLLER PAWL £13.74 Add
015 L0115-040 WASHER FLAT ZP 1/4x5/8x18G £4.05 Add
016 L1030-270 PAWL SPRING £3.53 Add
017 L1030-250 RATCHET BACK ROLLER RH COMPL £64.93 Add
018 L1030-245 RATCHET BACK ROLLER LH COMPL £64.93 Add
020 L1730-330 DRUM BR ASSY GOLF BLACK £298.15 Add
022 L1730-190 BACK ROLLER BRONZE BUSH GOLF £39.02 Add
023 L1530-450 ROLLER BACK ASSY+BRGS 500 £607.29 Add
023 L1530-451 BACK ROLLER ASSY GOLF L1730-400 N/A POA
024 FNLPL10 NUT NYLOC ZP M10 N/A POA
025 FWAPL10 WASHER FLAT ZP M10X21X1.6 N/A POA
026 L1545-300 ROLLER FRONT BRKT ASSY 500 ZP £80.76 Add
027 L1035-230 BOLT REEL ADJ PIVOT ZP £7.26 Add
028 L0135-025 E CLIP 5/8" £5.10 Add
029 L0115-016 WASHER FLAT ZP M16x25x1.6 £4.05 Add
030 L1045-220 SPRING FRONT ROLLER ADJUSTER £5.23 Add
031 L1045-240 HANDWHEEL FRONT ROLLER ADJ £15.02 Add
032 FNLPL12 NUT NYLOC ZP M12 £3.14 Add
033 FWAPL28 WASHER FLAT ZP M12X25X1.6 FWAPL12 N/A POA
034 L1545-395 SHAFT FRONT ROLLER 500 ZP £80.65 Add
035 L0115-056 WASHER FLAT ZP M16X34X2.5 £3.02 Add
036 L1045-385 ROLLER WOOD 45MM STAINED £22.19 Add
037 L1045-390 ROLLER WOOD 82MM STAINED £32.24 Add
038 L1545-350 FRONT ROLLER SPACER 500 £10.58 Add
039 L1545-400 FRONT ROLLER ASSY 500 £191.82 Add
040 L1745-340 FRONT ROLLER SHAFT GOLF £44.08 Add
041 L1745-405 ROLLER FRONT ASSY-STEEL GOLF L1745-420 £109.84 Add
042 FBRL080 BEARING 6203-2RS (OBSOLETE) N/A POA
043 L1745-335 END CAP £31.81 Add
044 FSCPL08 SCREW ST SS PHD SQUA #6X1/2 £4.05 Add
045 L1745-200 FRONT ROLLER BRKT £30.93 Add
046 FBOPL85 BOLT ENG ZP M10 X 25 £5.85 Add
047 L1745-350 FRONT ROLLER ASSY STEEL GOLF N/A POA
048 L1745-215 SPACER HANDWHEEL ROLLER ZP N/A POA
049 FNUPL10 NUT ZP M10 N/A POA
050 L0111-046 NUT NYLOC ZP THIN 3/8 UNF £3.02 Add
051 FNLPL06 NUTNYLOCZPM6 £5.37 Add
052 L1745-130 SHAFT TURF RAKE 1/2 GOLF ZP £64.30 Add
053 L1745-140 SHAFT TURF RAKE 5/16 GOLF ZP N/A POA
054 L1745-105 TURF RAKE BRKT ZP £46.08 Add
055 FBOPL18 BOLT HT ZP M8X16 SET SCREW £4.59 Add
056 FNLPL08 NUTNYLOCZPM8 N/A POA
057 L1745-115 TURF RAKE SPACER £10.87 Add
058 L1745-120 TINE-TURF RAKE £7.72 Add
059 L1745-150 TURF RAKE ASSY COMPL GOLF £241.55 Add
