FG722_0100

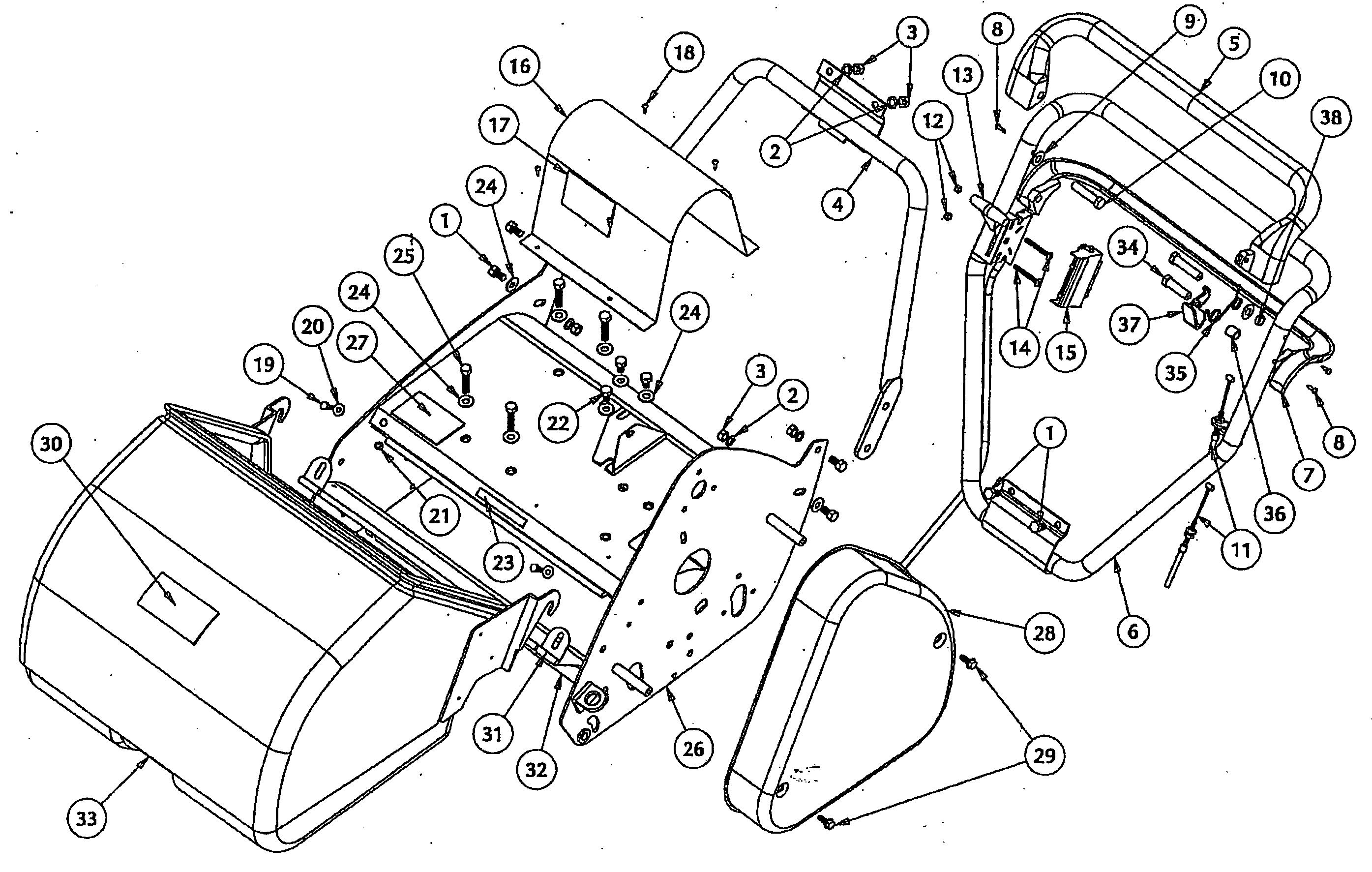

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG722_0100

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FBOPL02 BOLT HT ZP M8X20 SET SCREW £3.31 Add
002 FWAPL58 WASHER SPRING ZPM8 N/A POA
003 FNUPL08 NUTZPM8 N/A POA
004 L1650-150 HANDLE LOWER 660 CHROME £119.56 Add
005 L1050-720B LEVER-CLUTCH UPPER REEL BLK £53.54 Add
006 L1050-705C HANDLEBAR-UPPER OPC CHME £191.97 Add
007 L1050-730B LEVER-CLUTCH LOWER REEL BLK £53.28 Add
008 L0108-027 SCREW TAPTITE M5X12 HEX HD ZP £4.05 Add
009 L1050-715 WASHER-PLASTIC 10 X 20 X 1 £5.85 Add
010 L1050-710Z BOSS-PIVOT LEVER ZP £14.04 Add
011 L1050-700 CABLE-CLUTCH ASSY 1305MM PRE08 £46.89 Add
012 FNLPL05 NUT NYLOC ZP M5 N/A POA
013 L1050-090 THROTTLE CTRL 860MM T-BAR REEL £79.39 Add
014 FSCPL05 SCREW MC ZP PHD POZI M5 X 40 N/A POA
015 L1050-095 THROTTLE CTRL CASE 860MM £14.04 Add
016 L1510-700O COVER-SHAFT 500/660 ORANGE N/A POA
016 L1510-700S COVER-SHAFT 500/660 SILVER N/A POA
016 L1510-700R COVER-SHAFT 500/660 RED £108.14 Add
017 L1670-145 DECAL MOWER TD L/M 660 N/A POA
017 L1670-146 DECAL MOWER TD \M 660C N/A POA
018 FSCPL08 SCREW ST SS PHD SQUA #6X1/2 £4.05 Add
019 FBOPL03 BOLTZPM6X12SET SCREW N/A POA
020 FWAPL56 WASHER SPRING ZPM6 £3.23 Add
021 FNUPL06 NUT ZP M6 £3.23 Add
022 FBOPL18 BOLT HT ZP M8X16 SET SCREW £4.59 Add
023 L1070-234 DECAL-RAZOR CUT SYSTEM N/A POA
024 FWAPL08 WASHER FLAT ZP M8X19X1.6 N/A POA
025 FBOPL35 BOLT HT ZP M8X35 SET SCREW £8.32 Add
026 L1605-710O FRAME - 660 ORANGE N/A POA
026 L1605-710S FRAME-660/C W/A SILVER N/A POA
026 L1605-710R FRAME-660/C W/A RED £356.08 Add
026 L1105-710O FRAME - SPORT ORANGE N/A POA
026 L1105-710S FRAME - SPORT W/A PTD SILVER N/A POA
026 L1705-710O FRAME - GOLF ORANGE N/A POA
026 L1705-710S FRAME-M500 GOLF SILVER N/A POA
027 L1070-230 DECAL-CAUTIONREEL £14.04 Add
028 L1010-705O GUARD-CHAIN ORANGE N/A POA
028 L1010-705S GUARD-CHAIN SILVER N/A POA
028 L1010-705R GUARD-CHAIN RED £79.07 Add
029 L0108-030 SCREW TAPTITE M6X16 HEX HD ZP £6.68 Add
030 L1670-145 DECAL MOWER TD L/M 660 N/A POA
030 L1670-147 DECAL CATCHER 660C WHITE N/A POA
031 L1010-190 TAB-GRASS THROWER SC £23.80 Add
032 L1610-210 GRASS THROWER 660 ORANGE N/A POA
032 L1610-215 GRASS THROWER 660 SILVER N/A POA
032 L1610-195R GRASS THROWER 660 RED £91.50 Add
033 L1665-200O CATCHER 660 ORANGE N/A POA
033 L1665-200B CATCHER ASSY 660 BLACK £471.11 Add
034 L1050-712Z BOSS-PIVOT LEVER 41.5MM ZP £14.04 Add
035 L1050-709 SPRING LEVERLOCK £5.10 Add
036 L1050-707 LEVER LOCK SPACER £6.98 Add
037 L1050-706 LEVER LOCK £14.04 Add
038 L1050-717Z SPACER PIVOT LEVER £6.98 Add
