FG722_0200

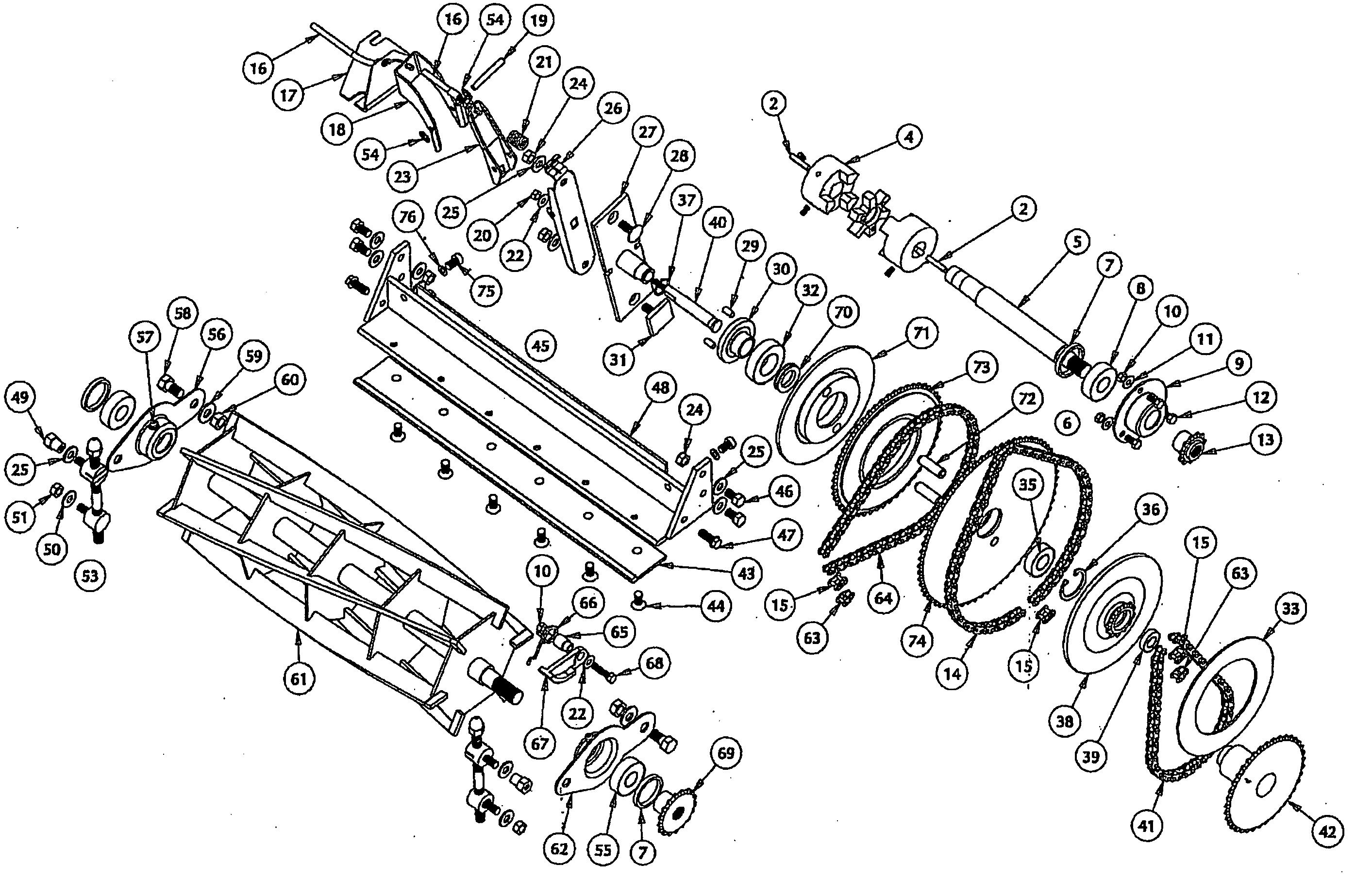

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG722_0200

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 L0200-110 ENGINE-TECUMSEH N/A POA
001 L0200-120 ENGINE-BRIGGS & STRATTON N/A POA
002 L1015-385 KEY CENT CLUTCH KEY 3/16X1 £8.65 Add
004 L1015-700 COUPLING-INLINE 3/4TYPE 095 £140.30 Add
004 L1015-705 COUPLING-INLINE 5/8"TYPE 095 £140.30 Add
005 L1515-700B BAR-DRIVE 500/660 3/4* BLACK £82.27 Add
005 L1515-710B BAR-DRIVE 500/660 5/8" BLACK N/A POA
006 L1515-705 BAR-DRIVE ASSY 500/660 3/4" £87.06 Add
006 L1515-715 BAR-DRIVE ASSY 500/660 5/8" N/A POA
007 L1060-120 SPACER BEARING PLASTIC HOPE £6.34 Add
008 FBRL080 BEARING 6203-2RS (OBSOLETE) N/A POA
009 L1060-145 HOUSING BEARING ROUND BLACK £39.11 Add
010 FNUPL06 NUT ZP M6 £3.23 Add
011 FWAPL56 WASHER SPRING ZPM6 £3.23 Add
012 FBOPL01 BOLT HT ZP M6X16 SET SCREW £3.23 Add
013 L1020-741 SPROCKET-MOTOR 10T £59.89 Add
014 L1025-725 CHAIN £70.88 Add
015 L1025-490 CHAIN CONN LINK 3/8 ANSI 35 £8.89 Add
016 L1050-700 CABLE-CLUTCH ASSY 1305MM PRE08 £46.89 Add
017 L1020-785B BRACKET-CABLE RETAIN W/A BLACK £64.30 Add
018 L1020-710Z BRACKET - CLUTCH REEL ZP £14.67 Add
019 L1020-770Z PIN-6X45 LONG ZP £6.88 Add
020 FNLPL06 NUTNYLOCZPM6 £5.37 Add
021 L1220-395 SPRING £6.89 Add
022 FWAPL06 WASHER FLAT ZP M6X16X1.2 £4.22 Add
023 L1020-700Z LEVER - CLUTCH ROLLER ZP £30.97 Add
024 FNUPL08 NUTZPM8 N/A POA
025 FWAPL58 WASHER SPRING ZPM8 N/A POA
026 L1020-705Z BRACKET - CLUTCH ROLLER ZP £27.95 Add
027 L1020-720 CLUTCH PLATE £43.49 Add
028 FBOPL21 BOLT ZP M8X20 CUP HD £4.94 Add
029 L1020-726 PIN-CLUTCH THRUST £9.33 Add
030 L1020-727 BLOCK - CLUTCH THRUST L1020-725 N/A POA
031 L1020-765 PLATE-CLAMP CLUTCH ASSY £10.24 Add
032 FBRL130 BEARING 6005-2RS £44.80 Add
033 L1020-760 LINING-CLUTCH 2MM £8.46 Add
035 FBRL120 BEARING 6003-2RS £29.10 Add
036 L0135-064 CIRCLIP-INTERNAL 35MM £7.72 Add
037 L0135-063 CIRCUP-EXTERNAL17MM £5.17 Add
038 L1020-730 PLATE-CLUTCH ROLLER W/A £102.61 Add
039 FBRL110 BEARING 6901-2RS1 £60.88 Add
040 L1020-715 BAR - CLUTCH CONTROL £64.30 Add
041 L1025-716 CHAIN £30.26 Add
042 L1020-753 SPROCKET-ROLLER 39T WA £91.94 Add
043 L1640-295 BLADE BOTTOM 660 FLAT £195.61 Add
043 L1740-295 BLADE BOTTOM GOLF SHAVER £120.40 Add
043 L1640-295 BLADE BOTTOM 660 FLAT £195.61 Add
044 FSCPL41 SCREW £3.65 Add
045 L1640-460 BLADE BOTTOM ASSY 660 FLAT £382.77 Add
045 L1740-450 BLADE BOTTOM ASSY GOLF SHAVER £206.86 Add
045 L1640-460 BLADE BOTTOM ASSY 660 FLAT £382.77 Add
046 FBOPL02 BOLT HT ZP M8X20 SET SCREW £3.31 Add
047 L0108-039 SCREW TAPTITE M8X20 HEX HD ZP £7.10 Add
048 L1640-390 CARRIER ASSY BOTTOM BLADE 660 £187.20 Add
049 L1035-240 STUD CATCHER ZP £5.85 Add
050 FWAPL08 WASHER FLAT ZP M8X19X1.6 N/A POA
051 FNLPL08 NUTNYLOCZPM8 N/A POA
053 L1035-290 ADJ ASSY REEL SQUEEZED £49.91 Add
054 L0135-015 WASHER STARLOCK M6 PUSHON FIX £3.02 Add
055 FBRL080 BEARING 6203-2RS (OBSOLETE) N/A POA
056 L1035-220 HOUSING REEL BEARING RH BLACK L1035-215 N/A POA
057 L1060-110 NIPPLE GREASE 1/4 SAE STRAIGHT £5.54 Add
058 L1035-230 BOLT REEL ADJ PIVOT ZP £7.26 Add
059 L1035-200 WASHER REEL BRG HSNG 3/8 ZP £3.15 Add
060 FNLPL45 NUT NYLOC ZP 3/8 UNF N/A POA
061 L1635-400 REEL ASSY COMPL 660 6 BLADE £552.57 Add
061 L1735-400 REEL ASSY COMPL GOLF 10 BLADE £761.34 Add
061 L1135-400 REEL ASSY COMPL 66010 BLADE £682.99 Add
062 L1035-210 HOUSING REEL BEARING LH BLACK L1035-205 N/A POA
063 L1025-480 CHAIN CRANK LINK 3/8 ANSI 35 £11.40 Add
064 L1025-720 CHAIN £56.96 Add
065 L1025-700 BOSS-CHAIN TENSION £10.24 Add
066 L1025-705 SPRING-TORSION REEL £14.04 Add
067 L1025-710 SHOE-CHAIN TENSION £14.04 Add
068 FBOPL09 BOLT ZP M6X30 SET SCREW N/A POA
069 L1020-755 SPROCKET-REEL 17T £100.77 Add
070 L1020-762 DISC SPRING £3.53 Add
071 L1020-810 PLATE-DRIVE £122.39 Add
072 L1020-739 PIN ROLLM1 OX30 £8.99 Add
073 L1020-744 SPROCKET 51T £90.43 Add
074 L1020-800 SPROCKET-CLUTCH 66TEETH 2002 £232.55 Add
075 FSCPL55 SCREW SKT HD SS 5/16X1/2 UNC N/A POA
076 FWAPL09 WASHER FLAT SS M8X19X1.6 N/A POA
