FG722_0300

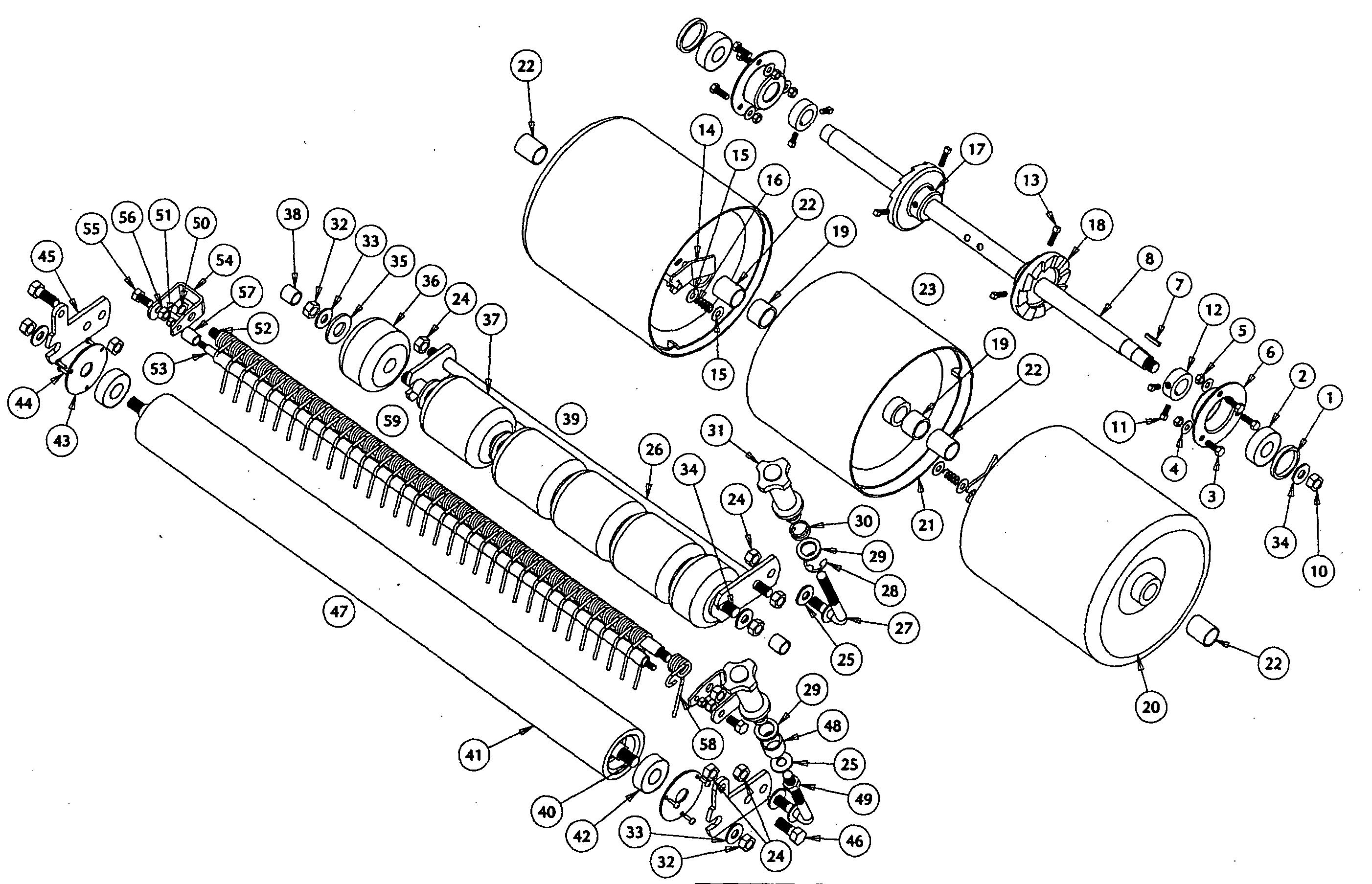

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	L1060-120	NO LONGER AVAILABLE	N/A	POA
002	FBRL080	NO LONGER AVAILABLE	N/A	POA
003	FBOPL01	BOLT	£2.98	Add
004	FWAPL56	SPRING WASHER	£2.98	Add
005	FNUPL06	NUT	£2.98	Add
006	L1060-145	BEARING HOUSING	£34.85	Add
007	L1030-170	ROLLER DRIVE KEY	£6.74	Add
008	L1630-350	BACK ROLLER SHAFT 660	£88.75	Add
010	L0110-013	NUT	£4.16	Add
011	L0107-041	SCREW CUP POINT	£5.87	Add
012	L1030-230	BACK ROLLER LOCKING COLLAR	£22.37	Add
013	L0107-041	SCREW CUP POINT	£5.87	Add
014	L1030-290	BACK ROLLER PAWL	£16.44	Add
015	L0115-040	NO LONGER AVAILABLE	N/A	POA
016	L1030-270	spring two only left now obsolete	N/A	POA
017	L1030-250	BACK ROLLER RATCHET RH	£57.74	Add
018	L1030-245	BACK ROLLER RATCHET LH	£57.74	Add
019	L1630-200	SPACING TUBE	£9.77	Add
020	L1730-330	BACK ROLLER DRUM (GOLF)	£264.81	Add
021	L1630-305	CENTRE DRUM (660)	£137.56	Add
022	L1730-190	SINTERED BUSH	£34.74	Add
023	L1630-450	BACK ROLLER ASSY (660)	£683.77	Add
023	L1530-451	ROLLER BACK ASSY	£670.71	Add
024	FNLPL10	NUT NYLOC ZP M10	N/A	POA
025	FWAPL10	WASHER FLAT ZP M10X21X1.6	N/A	POA
026	L1645-300	FRONT ROLLER BRKT ASSY (660)	£73.94	Add
027	L1035-230	PIVOT BOLT	£6.53	Add
028	L0135-025	E CLIP	£4.63	Add
029	L0115-016	WASHER	£3.70	Add
030	L1045-220	FRONT ROLLER ADJ SPRING	£4.74	Add
031	L1045-240	NO LONGER AVAILABLE	N/A	POA
032	FNLPL12	NUT	£2.89	Add
033	FWAPL28	FLAT WASHER	£3.83	Add
034	L1645-395	FRONT ROLLER SHAFT (660)	£66.14	Add
035	L0115-056	WASHER	£2.79	Add
036	L1045-385	NO LONGER AVAILABLE	N/A	POA
037	L1045-390	ROLLER WOOD 82MM STAINED	£37.23	Add
039	L1645-400	FRONT ROLLER ASSY (660)	£196.55	Add
040	L1145-340	FRONT ROLLER SHAFT 660	N/A	POA
040	L1745-340	SHAFT	£39.84	Add
041	L1145-345	FRONT ROLLER STEEL TUBE 660	N/A	POA
041	L1745-405	ROLLER FRONT ASSY-STEEL GOLF L1745-420	£126.86	Add
042	FBRL080	NO LONGER AVAILABLE	N/A	POA
043	L1745-335	CAPS	£28.34	Add
044	FSCPL08	SCREW	£3.70	Add
045	L1745-200	FRONT ROLLER BRKT	£27.97	Add
046	FBOPL85	BOLT	£5.31	Add
047	L1145-350	FRONT ROLLER ASSY STEEL 660	N/A	POA
047	L1745-350	FRONT ROLLER ASSY STEEL GOLF	N/A	POA
048	L1745-215	SPACER HANDWHEEL ROLLER ZP	N/A	POA
049	FNUPL10	NUT ZP M10	N/A	POA
050	L0111-046	NYLOC NUT	£2.79	Add
051	FNLPL06	NYLOC NUT	£4.92	Add
052	L1145-130	SHAFT TURF RAKE	£37.03	Add
052	L1745-130	TURF RAKE SHAFT	£57.19	Add
053	L1145-140	SHAFT TURF RAKE	£37.03	Add
053	L1745-140	SHAFT TURF RAKE 5/16 GOLF ZP	N/A	POA
054	L1745-105	TURF RAKE BRKT	£41.02	Add
055	FBOPL18	BOLT	£4.18	Add
056	FNLPL08	NUTNYLOCZPM8	N/A	POA
057	L1745-115	TURF RAKE SPACER	£9.77	Add
058	L1745-120	TURF RAKE TYNE	£6.94	Add
059	L1145-150	COMPLETE RAKE ASSY	£204.52	Add
059	L1745-150	TURF RAKE ASSY (GOLF)	£214.57	Add
