FG768_0111

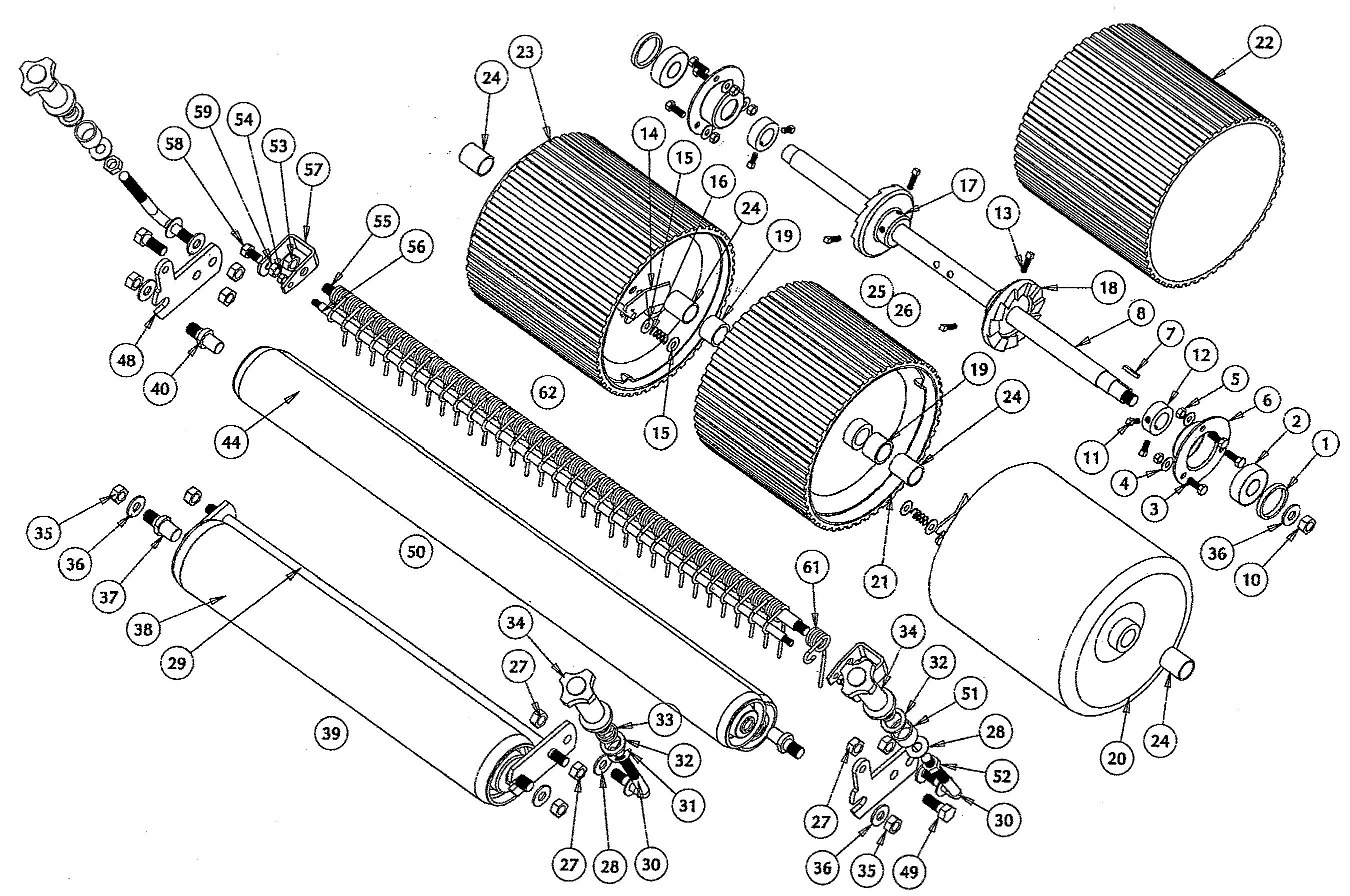

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG768_0111

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 L1060-120 SPACER BEARING PLASTIC HOPE £6.34 Add
002 FBRL080 BEARING 6203-2RS (OBSOLETE) N/A POA
002 FBRL080 BEARING 6203-2RS (OBSOLETE) N/A POA
003 FBOPL01 BOLT HT ZP M6X16 SET SCREW £3.23 Add
004 FWAPL56 WASHER SPRING ZPM6 £3.23 Add
005 FNUPL06 NUT ZP M6 £3.23 Add
006 L1060-145 HOUSING BEARING ROUND BLACK £39.11 Add
007 L1030-170 KEY BACK ROLLER DRIVE 1/8X3/8 £7.47 Add
008 L1630-350 SHAFT BACK ROLLER DRILLED 660 £99.85 Add
010 L0110-013 NUT ZP HALF M12 N/A POA
011 L0107-041 SCREW SQHD CUP POINT 5/16X3/8 L0107-040 £6.48 Add
012 L1030-230 COLLAR LOCKING BACK ROLLER ZP £25.07 Add
013 L0107-041 SCREW SQHD CUP POINT 5/16X3/8 L0107-040 £6.48 Add
014 L1030-290 BACK ROLLER PAWL £13.74 Add
015 L0115-040 WASHER FLAT ZP 1/4x5/8x18G £4.05 Add
016 L1030-270 PAWL SPRING £3.53 Add
017 L1030-250 RATCHET BACK ROLLER RH COMPL £64.93 Add
018 L1030-245 RATCHET BACK ROLLER LH COMPL £64.93 Add
020 L1730-330 DRUM BR ASSY GOLF BLACK £298.15 Add
020 L1530-330 DRUM BR ASSY 500/660 BLACK £275.62 Add
021 L1630-305 DRUM CENTRE BR ASSY 660 BLACK £124.14 Add
022 L1230-180 SLEEVE RUBBER BACK ROLLER N/A POA
023 L1230-305 DRUM ASSY 660 CTR RUBBER B/R N/A POA
024 L1730-190 BACK ROLLER BRONZE BUSH GOLF £39.02 Add
025 L1630-450 ROLLER BACK ASSY+BRGS 660 £770.03 Add
027 FNLPL10 NUT NYLOC ZP M10 N/A POA
028 FWAPL10 WASHER FLAT ZP M10X21X1.6 N/A POA
029 L1645-300 ROLLER FRONT BRKT ASSY 660 ZP £83.16 Add
030 L1045-230 STUD FRONT ROLLER ADJ CHROME £25.75 Add
031 L0135-025 E CLIP 5/8" £5.10 Add
032 L0115-016 WASHER FLAT ZP M16x25x1.6 £4.05 Add
033 L1045-220 SPRING FRONT ROLLER ADJUSTER £5.23 Add
034 L1045-240 HANDWHEEL FRONT ROLLER ADJ £15.02 Add
035 FNLPL12 NUT NYLOC ZP M12 £3.14 Add
036 FWAPL28 WASHER FLAT ZP M12X25X1.6 FWAPL12 N/A POA
037 L1045-300 STUB SHAFT-STEEL FRONT ROLLER £19.67 Add
038 L1645-405 ROLLER FRONT STEELTUBE 660 £145.34 Add
039 L1645-420 ROLLER FRONT ASSY-STEEL M660 £119.75 Add
040 L1045-301 STUB SHAFT-STEEL ROLLER 60 OD £13.58 Add
044 L1745-405 ROLLER FRONT ASSY-STEEL GOLF L1745-420 £109.84 Add
044 L1645-425 ROLLER FRONT ASSY-660 STEEL V2 £144.65 Add
048 L1745-200 FRONT ROLLER BRKT £30.93 Add
049 FBOPL93 BOLT HT ZP M10X25 N/A POA
050 L1645-425 ROLLER FRONT ASSY-660 STEEL V2 £144.65 Add
051 L1745-215 SPACER HANDWHEEL ROLLER ZP N/A POA
052 FNUPL10 NUT ZP M10 N/A POA
053 L0111-046 NUT NYLOC ZP THIN 3/8 UNF £3.02 Add
054 FNLPL06 NUTNYLOCZPM6 £5.37 Add
055 L1145-130 SHAFT TURF RAKE 1/2 660 ZP £41.01 Add
056 L1145-140 SHAFT TURF RAKE 5/16 660 ZP £41.01 Add
057 L1745-105 TURF RAKE BRKT ZP £46.08 Add
058 FBOPL18 BOLT HT ZP M8X16 SET SCREW £4.59 Add
059 FNLPL08 NUTNYLOCZPM8 N/A POA
061 L1745-120 TINE-TURF RAKE £7.72 Add
062 L1145-150 TURF RAKE ASSY COMPL 660 £226.86 Add
062 L1745-150 TURF RAKE ASSY COMPL GOLF £241.55 Add
