FG496_0010

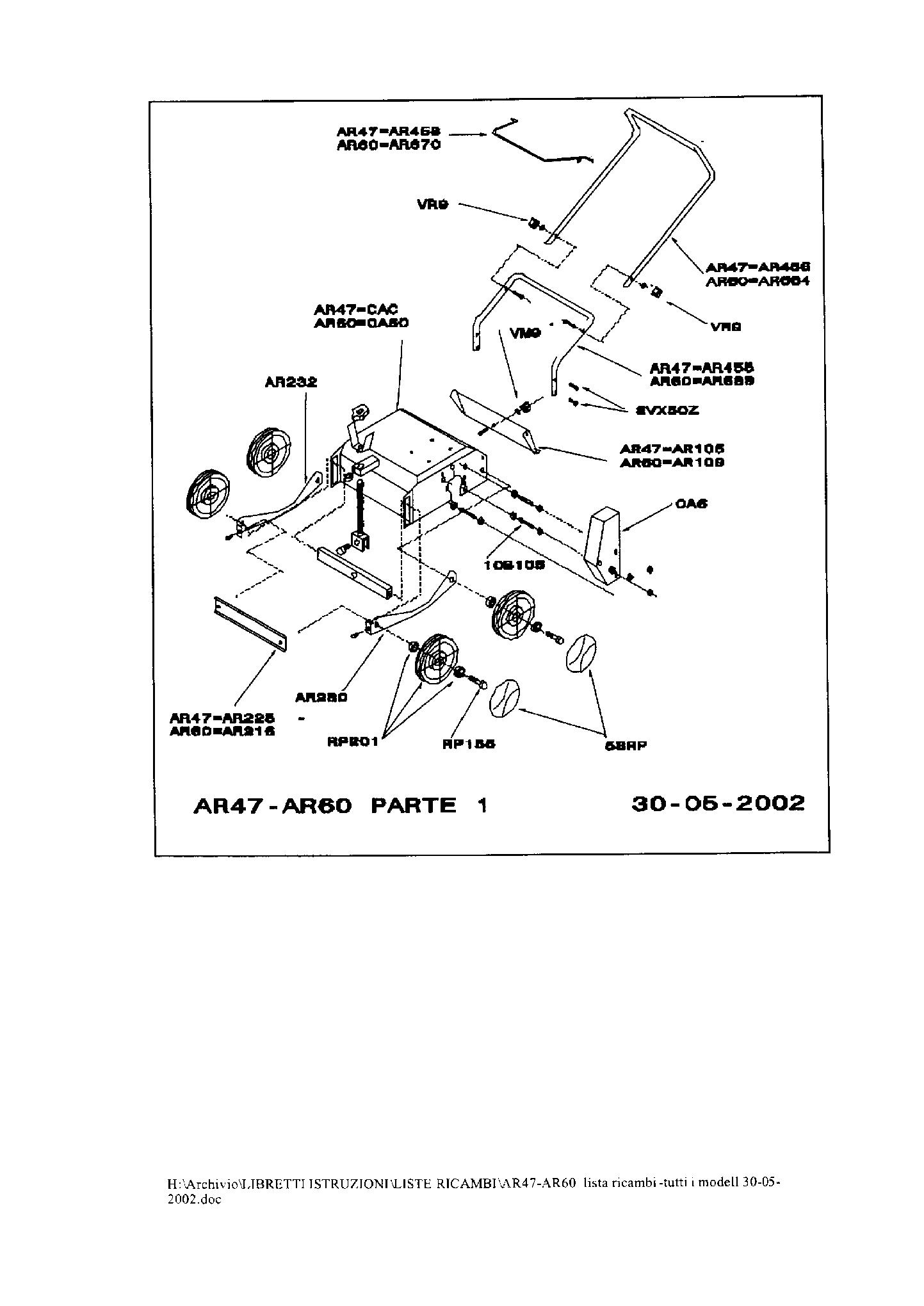

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG496_0010

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
787 Belt SPZX272 (OBSOLETE) (OBSOLETE) N/A POA
787 Belt SPZX272 (OBSOLETE) (OBSOLETE) N/A POA
10B105 CARTER SPORT SCREW M10 £8.21 Add
3B35 Metallic bush D34 L3 £8.01 Add
58RP Plastic wheel cover £9.98 Add
5V8X20 Screw M8X20 £5.01 Add
752Z N/A POA
8VX50Z ROUND HEAD SCREW M8x50 N/A POA
751Z Pulley engine side N/A POA
752Z N/A POA
951Z pulley rotor side N/A POA
952Z PULLEY D98.5 REEL SIDE £40.88 Add
AC36 Knives support star £7.89 Add
AC44 Plastic bush £6.11 Add
AR22 CARTER FOR BELTS PROTECTION N/A POA
AR2282 Protection feet middle side N/A POA
AR230 Protection feet left side £25.57 Add
AR232 Protection feet right side £30.08 Add
AR3818 Metallic body N/A POA
AR3822 frontal wheel bar N/A POA
AR393 Hexagonal axle N/A POA
AR397 Knives suppurt pin £25.98 Add
AR405 PROTECTION FOR DISCH. OPENING N/A POA
AR416 Friction cord complete £50.24 Add
AR445 Handle - lower part N/A POA
AR454 Handle - upper part N/A POA
AR468 Clutch lever N/A POA
B34 Metallic bush D34 L7 N/A POA
BB6 Barra + pomello £20.03 Add
BLO locker for hogh regulation screw N/A POA
BPLF204 support+ bearing N/A POA
CF44 Fixed knife for Ar38 N/A POA
COA Mobile knife £7.17 Add
MM17 Spring £4.09 Add
R8X24 Washer 8X24 £5.01 Add
RP10 Zinc plated washer M10 N/A POA
RP155 SCREW FOR RP201 WHEEL £3.53 Add
RP201 Plastic wheel with bearings £50.75 Add
T46 Belt tighter complete N/A POA
V16 Knob M16 £7.63 Add
VM9 BACK KNOB HOLE M8 N/A POA
VP101 BELT GUIDE £14.85 Add
VR9 Plastic knob M8 £14.24 Add
