FG495_0010

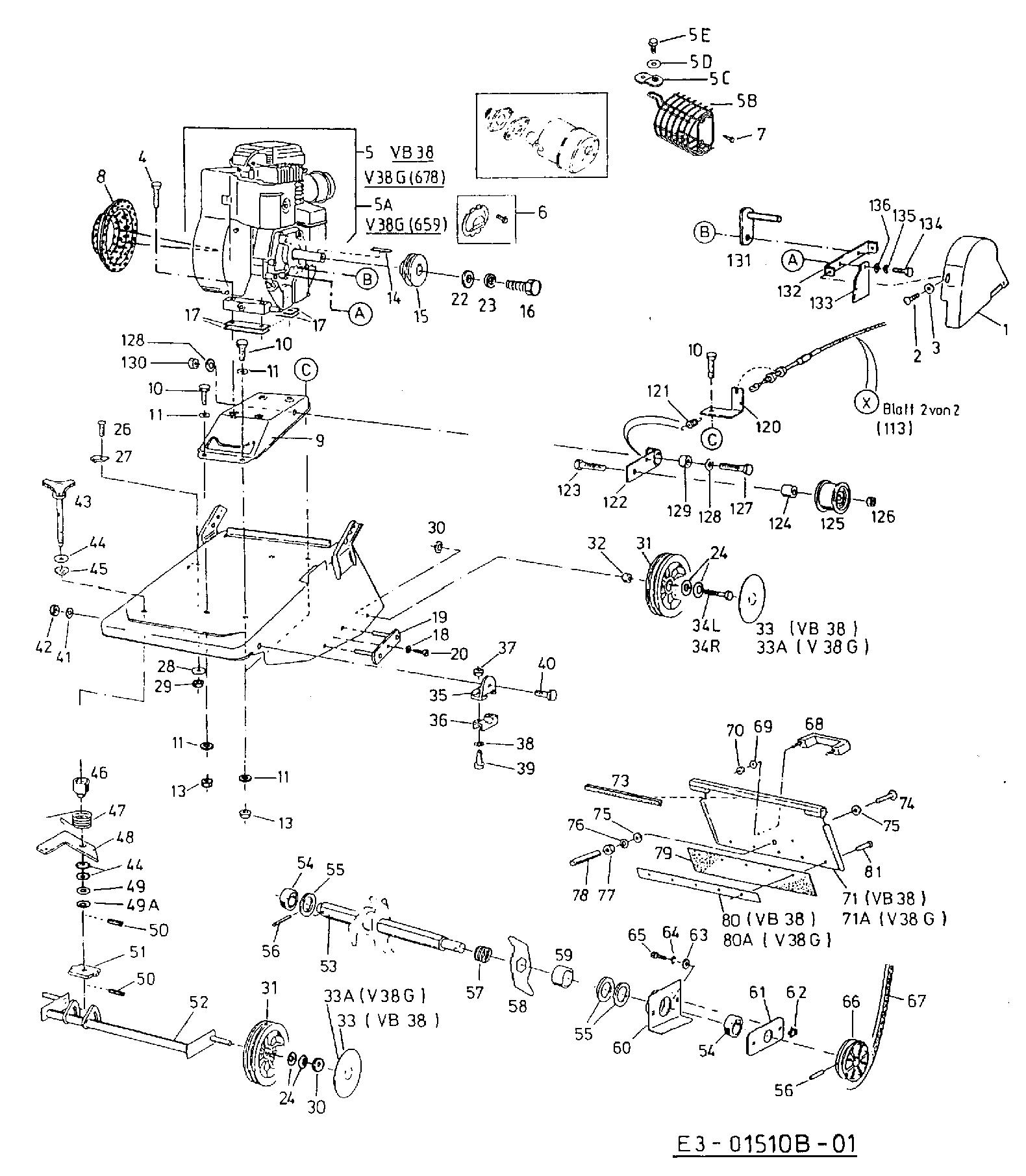

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	079.85.435	NO LONGER AVAILABLE	N/A	POA
002	22.6417.18	Screw	£2.90	Add
003	736-0697	Washer 24.6486.13	£2.79	Add
004	710-1733	HEX. SCREW M8x35 DIN 933-8.8	£4.25	Add
005	752B1319E1	ENGINE 3,5 HP B&S	N/A	POA
006	751B222522	OUTER EXHAUST DEFLECTOR	N/A	POA
007	751B094887	SCREW	N/A	POA
008	751B281705	NO LONGER AVAILABLE	N/A	POA
009	079.85.356	ENGINE BRACKET	£77.98	Add
010	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
011	736-0700	FLAT WASHER	£2.63	Add
013	712-0692	HEX NUT	£3.10	Add
014	714-0122	SQUARE KEY	£12.95	Add
015	756-1046	PULLEY	£60.06	Add
016	710-0191	HEX BOLT (RED)	£7.13	Add
017	079.85.038	Shim	£9.82	Add
018	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
019	079.86.841	BELT GUIDE	£12.86	Add
020	22.6417.34	Screw	£2.23	Add
021	782-0339638	HOUSING ASSY. 079.86.831	£302.03	Add
022	736-0690	Washer 24.6487.22	£4.35	Add
023	736-0686	NO LONGER AVAILABLE	N/A	POA
024	736-0758	WASH:BELL:25mmODx12.2IDx1.6 28.7112.11	£4.11	Add
026	23.5423.08	Screw	£2.40	Add
027	736-2219	CLAMP	N/A	POA
028	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
029	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
030	000.02.401	DECAL	£3.80	Add
031	734-1879637	WHEEL DIA 180mm, BALL BEARING	£27.42	Add
032	079.85.409	WASHER	£5.80	Add
033	720-0337638	HUB CAP STANDARD	£5.10	Add
035	079.30.419	UPPER CABLE CLAMP	£7.02	Add
036	079.30.420	LOWER CABLE CLAMP	£6.32	Add
037	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
038	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
039	21.5441.16	Screw	£4.36	Add
040	000.02.528	NO LONGER AVAILABLE	N/A	POA
041	736-0757	LOCK WASHER 000.02.581	£3.49	Add
042	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
043	079.31.934	ADJUSTER SCREW	£30.45	Add
044	736-0758	WASH:BELL:25mmODx12.2IDx1.6 28.7112.11	£4.11	Add
045	000.20.656	WASHER	£2.79	Add
046	079.85.403	COLLAR	£12.26	Add
047	000.30.341	SPRING	£11.15	Add
048	079.85.402	L'BRACKET	£7.48	Add
049	24.6273.40	Shim	£4.11	Add
050	25.3197.77	Spring pin	£3.41	Add
051	079.85.413	PLATE	£35.00	Add
052	079.30.784	AXLE	£141.76	Add
053	079.85.399	SHAFT	£85.59	Add
054	26.1037.04	Bearing	£17.51	Add
055	079.85.341	SPACER (RED)	£5.41	Add
056	25.3197.98	Spring pin	£3.77	Add
057	000.30.335	SPRING	£5.42	Add
058	079.85.339	BLADE	£10.26	Add
059	079.85.404	SPACER (RED)	£13.87	Add
05A	752B0319E1	ENGINE 3,5 HP B&S	£462.19	Add
05B	751B493000	GUARD MUFFLER	N/A	POA
05C	751B224755	BRACKET	N/A	POA
05D	751B224026	washer	N/A	POA
05E	092.32.694	Screw	£13.90	Add
060	079.86.832	BRACKET	£26.91	Add
061	079.85.414	BRACKET	£11.00	Add
062	000.06.369	NO LONGER AVAILABLE	N/A	POA
063	736-0668	WASHER	£2.23	Add
064	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
065	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
066	079.85.437	PULLEY	£32.96	Add
067	000.75.996	BELT	£33.48	Add
068	720-04043	handle 079.80.080	£11.55	Add
069	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
070	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
071	079.86.909	DEFLECTOR	£86.49	Add
073	R00.37.313	STRIP	£20.14	Add
074	21.6424.02	Screw	£4.55	Add
075	736-0700	FLAT WASHER	£2.63	Add
076	736-0708	Lockwasher 24.8190.18	£2.72	Add
077	24.1423.18	NO LONGER AVAILABLE	N/A	POA
078	R00.37.504	ROD	£10.44	Add
079	079.85.391	RUBBER STRIP	£20.58	Add
080	079.85.396	RETAINER STRIP	£11.64	Add
081	000.05.009	SCREW	£3.05	Add
082	079.07.643	UPPER HANDLE	£24.79	Add
083	079.06.714	THROTTLE LEVER	£14.51	Add
084	710-1736	SCREW 000.02.476	£3.90	Add
085	079.06.284	PLATE RH (RED)	£17.44	Add
086	079.06.285	PLATE LH	£17.44	Add
087	079.06.295	DRIVE BRACKET	£40.20	Add
088	23.5427.73	SLOTTET PAN HEAD SCREW	£5.31	Add
089	079.06.523	LOWER HANDLE	£59.76	Add
090	079.05.515	CABLE PROTECTION (RED)	£10.93	Add
091	21.1443.79	Screw	£4.50	Add
092	000.05.088	BOLT	£5.66	Add
093	736-0700	FLAT WASHER	£2.63	Add
094	736-0689	L-WASHER	£3.26	Add
095	720-0368	WING NUT	£5.19	Add
096	748-04036	INSULATING WASHER 079.06.307	£4.50	Add
097	731-04587A	NO LONGER AVAILABLE	N/A	POA
098	000.02.499	SCREW 50x14	£3.20	Add
099	720-0368	WING NUT	£5.19	Add
101	710-1719	BOLT	£4.89	Add
103	736-0688	WASH:FLAT:6x10x1.2	£2.93	Add
104	710-1705	HEX. SCREW:M5X16:DIN 933 8.8	£4.00	Add
105	079.05.507	Bolt	£3.61	Add
106	079.11.414	CLAMP	£6.30	Add
107	079.11.420	BOWDEN WIRE	£30.63	Add
108	23.5422.22	Screw	£3.45	Add
109	736-0668	WASHER	£2.23	Add
110	712-0691	HEX NUT M6 DIN 985	£2.66	Add
111	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
112	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
113	079.19.634	NO LONGER AVAILABLE	N/A	POA
114	079.06.280	INSTRUMENT PANEL	£41.25	Add
116	079.11.355	Shim inside	£5.95	Add
117	079.11.357	Shim outside	£6.04	Add
118	646-0125	GAS CABLE	£22.73	Add
120	079.85.411	COUNTER BRACKET	£5.95	Add
121	000.31.124	SPRING	£9.07	Add
122	079.86.833	LEVER (RED)	£12.26	Add
123	21.1441.92	Screw	£3.93	Add
124	079.85.410	BUSHING	£11.01	Add
125	079.19.615	NO LONGER AVAILABLE	N/A	POA
126	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
127	21.1441.89	Screw	£6.20	Add
128	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
129	079.85.416	BUSHING	£17.10	Add
130	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
131	079.85.815	NO LONGER AVAILABLE	N/A	POA
132	079.85.436	HOLDER	£9.22	Add
133	079.85.432	PROTECTION PLATE	£19.83	Add
134	000.02.278	BOLT	£5.78	Add
135	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add
136	736-0700	FLAT WASHER	£2.63	Add
137	196-042-678	NO LONGER AVAILABLE	N/A	POA
138	079.80.714	GR.CATCHER	£73.62	Add
139	079.80.702	FRAME	£150.51	Add
140	079.80.433	HANDLE	£17.51	Add
33A	720-0334662	HUB CAP WITH MTD LOGO, PREMIUM	£4.65	Add
34L	25.8422.73	WHEEL AXLE LEFT	£11.31	Add
34R	25.8422.70	BOLT	£11.00	Add
49A	24.6273.38	Distance shim	£3.59	Add
71A	079.86.818	FLAP	£58.58	Add
80A	079.85.408	STRIP	£12.26	Add
