FG495_0020

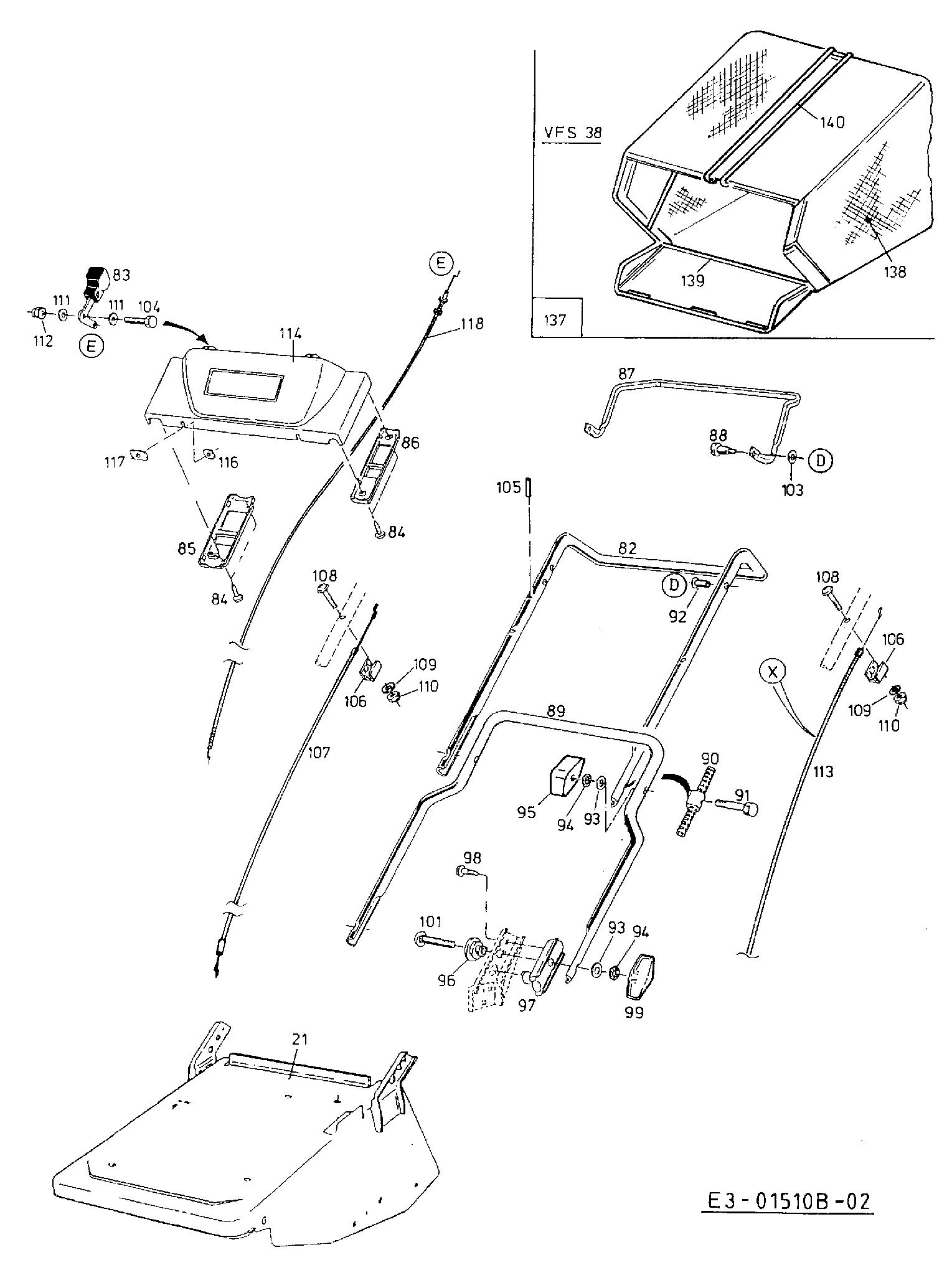

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG495_0020

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 079.85.435 Belt protection N/A POA
002 22.6417.18 Screw £2.20 Add
003 736-0697 Washer 24.6486.13 £2.19 Add
004 710-1733 HEX. SCREW M8x35 DIN 933-8.8 £4.95 Add
005 752B1319E1 ENGINE 3,5 HP B&S N/A POA
006 751B222522 OUTER EXHAUST DEFLECTOR N/A POA
007 751B094887 SCREW N/A POA
008 751B281705 GUARD: FINGER N/A POA
009 079.85.356 ENGINE BRACKET £87.71 Add
010 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £2.75 Add
011 736-0700 FLAT WASHER £1.90 Add
013 712-0692 HEX NUT £2.57 Add
014 714-0122 SQUARE KEY £10.82 Add
015 756-1046 PULLEY £67.52 Add
016 710-0191 HEX BOLT (RED) £5.98 Add
017 079.85.038 Rubber square £9.04 Add
018 736-0602 WASHER A 5,3 DIN 125 £3.60 Add
019 079.86.841 BELT GUIDE £14.37 Add
020 22.6417.34 Screw £2.39 Add
021 782-0339638 HOUSING ASSY. 079.86.831 £340.07 Add
022 736-0690 Washer 24.6487.22 £4.08 Add
023 736-0686 LOCK WASHER B10 DIN 127 N/A POA
024 736-0758 WASH:BELL:25mmODx12.2IDx1.6 28.7112.11 £4.41 Add
026 23.5423.08 Screw £2.58 Add
027 736-2219 CLAMP N/A POA
028 736-0661 WASHER A 5,3 DIN 9021 £3.18 Add
029 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
030 000.02.401 Lock washer £4.48 Add
031 734-1879637 WHEEL DIA 180mm, BALL BEARING £18.71 Add
032 079.85.409 SHIM £6.41 Add
033 720-0337638 HUB CAP STANDARD £6.77 Add
035 079.30.419 AXLE BEARING £7.96 Add
036 079.30.420 AXLE BRACKET £7.96 Add
037 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
038 736-0602 WASHER A 5,3 DIN 125 £3.60 Add
039 21.5441.16 Screw £3.51 Add
040 000.02.528 SCREW (OBSOLETE) N/A POA
041 736-0757 LOCK WASHER 000.02.581 £3.73 Add
042 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
043 079.31.934 ADJUSTING GRIP £34.17 Add
044 736-0758 WASH:BELL:25mmODx12.2IDx1.6 28.7112.11 £4.41 Add
045 000.20.656 WASHER £3.11 Add
046 079.85.403 BUSHING £13.69 Add
047 000.30.341 SPRING-TORSION £13.78 Add
048 079.85.402 Base lever £8.29 Add
049 24.6273.40 Shim £4.78 Add
050 25.3197.77 Spring pin £3.73 Add
051 079.85.413 BEARING PLATE £39.30 Add
052 079.30.784 FRONT AXLE £127.92 Add
053 079.85.399 BLADE SPINDLE £96.28 Add
054 26.1037.04 Bearing £15.16 Add
055 079.85.341 WASHER £7.14 Add
056 25.3197.98 Spring pin £3.54 Add
057 000.30.335 COMPRESSION SPRING £5.99 Add
058 079.85.339 BLADE £8.58 Add
059 079.85.404 DISTANCE TUBE £15.52 Add
05A 752B0319E1 ENGINE 3,5 HP B&S £520.46 Add
05B 751B493000 GUARD MUFFLER N/A POA
05C 751B224755 BRACKET N/A POA
05D 751B224026 washer N/A POA
05E 092.32.694 SCREW 751B094602 £19.60 Add
060 079.86.832 BEARING SUPPORT £40.25 Add
061 079.85.414 MOUNTING PLATE £12.28 Add
062 000.06.369 Nut £4.41 Add
063 736-0668 WASHER £1.91 Add
064 736-0648 WASHER:LOCK:B6:DIN 127 £2.12 Add
065 710-1753 HEX. SCREW:DIN 933-8.8 M6x20mm £3.41 Add
066 079.85.437 PULLEY £39.67 Add
067 000.75.996 V-BELT £40.32 Add
068 720-04043 handle 079.80.080 £9.85 Add
069 736-0602 WASHER A 5,3 DIN 125 £3.60 Add
070 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
071 079.86.909 REAR FLAP 4.30 X 16. 079.86.839 N/A POA
073 R00.37.313 TRIM STRIP £18.33 Add
074 21.6424.02 Screw £5.01 Add
075 736-0700 FLAT WASHER £1.90 Add
076 736-0708 Lockwasher 24.8190.18 £2.42 Add
077 24.1423.18 Nut N/A POA
078 R00.37.504 PROTECTION TUBE £11.65 Add
079 079.85.391 REAR FLAP £23.05 Add
080 079.85.396 HOLDER PLATE £13.00 Add
081 000.05.009 Rivet £2.94 Add
082 079.07.643 UPPER HANDLE £27.79 Add
083 079.06.714 THROTTLE LEVER £13.26 Add
084 710-1736 SCREW 000.02.476 £3.51 Add
085 079.06.284 FASTENING TRAY R.H. £19.51 Add
086 079.06.285 FASTENING TRAY L.H. £19.51 Add
087 079.06.295 DRIVE BRACKET £45.16 Add
088 23.5427.73 SLOTTET PAN HEAD SCREW £5.23 Add
089 079.06.523 LOWER HANDLE £67.19 Add
090 079.05.515 CABLE PROTECTION £16.47 Add
091 21.1443.79 Screw £5.40 Add
092 000.05.088 RIVET £6.25 Add
093 736-0700 FLAT WASHER £1.90 Add
094 736-0689 L-WASHER £2.66 Add
095 720-0368 WING NUT £4.36 Add
096 748-04036 INSULATING WASHER 079.06.307 £5.10 Add
097 731-04587A HANDLE BRACKET 079.06.308 £22.13 Add
098 000.02.499 SCREW £2.64 Add
099 720-0368 WING NUT £4.36 Add
101 710-1719 BOLT £4.12 Add
103 736-0688 WASH:FLAT:6x10x1.2 N/A POA
104 710-1705 HEX. SCREW:M5X16:DIN 933 8.8 £4.41 Add
105 079.05.507 Bolt £3.44 Add
106 079.11.414 CLAMP £5.28 Add
107 079.11.420 BOWDEN CABLE £26.48 Add
108 23.5422.22 Screw £2.82 Add
109 736-0668 WASHER £1.91 Add
110 712-0691 HEX NUT M6 DIN 985 £1.28 Add
111 736-0661 WASHER A 5,3 DIN 9021 £3.18 Add
112 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
113 079.19.634 S.P. CABLE £31.45 Add
114 079.06.280 Instrument panel £46.35 Add
116 079.11.355 Shim inside £5.54 Add
117 079.11.357 Shim outside £5.64 Add
118 646-0125 GAS CABLE £22.58 Add
120 079.85.411 COUNTER BRACKET £6.57 Add
121 000.31.124 SPRING, GOVERNOR £8.35 Add
122 079.86.833 LEVER £13.69 Add
123 21.1441.92 Screw £3.72 Add
124 079.85.410 UPPER SPACER £12.30 Add
125 079.19.615 Tension pulley £44.70 Add
126 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
127 21.1441.89 Screw £5.77 Add
128 736-0692 Flat Washer, 3/8" 43070 £2.28 Add
129 079.85.416 LOWER SPACER £15.60 Add
130 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
131 079.85.815 Belt spanner N/A POA
132 079.85.436 CAM BRACKET £10.27 Add
133 079.85.432 PROTECTION PLATE £22.23 Add
134 000.02.278 Screw £5.40 Add
135 736-0649A WASHER:LOCK:B8:DIN 12 736-0649 £2.17 Add
136 736-0700 FLAT WASHER £1.90 Add
137 196-042-678 catcher assy v38/g N/A POA
138 079.80.714 GR.CATCHER £82.81 Add
139 079.80.702 FRAME £135.81 Add
140 079.80.433 HANDLE £19.58 Add
33A 720-0334662 HUB CAP WITH MTD LOGO, PREMIUM £3.77 Add
34L 25.8422.73 WHEEL AXLE LEFT £12.60 Add
34R 25.8422.70 BOLT £12.28 Add
49A 24.6273.38 Distance shim £3.93 Add
71A 079.86.818 REAR FLAP 4.30 X 16. £65.87 Add
80A 079.85.408 HOLDER PLATE £13.69 Add
