FG648_0100

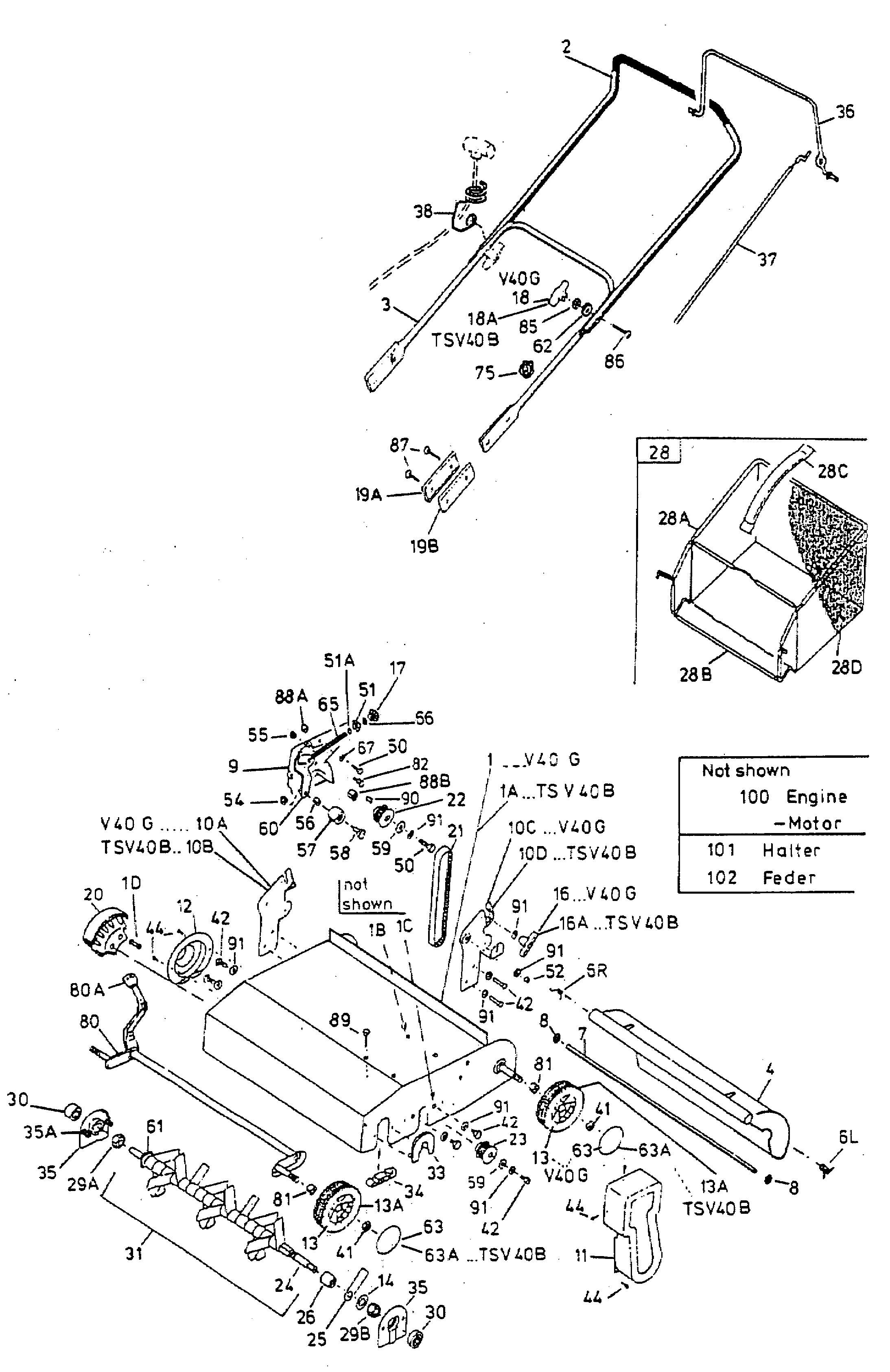

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	782-7054638	VERTIKUTIERER-GEHAUSE BENZIN	£142.41	Add
002	749-1335637	STIEL-OBERTEIL LACKIERT	£38.55	Add
003	749-1336637	SCHWARZ	£39.22	Add
004	100.024.063	REAR FLAP	£46.11	Add
007	110.000.587	STECKACHSE Rd 6x559 VERZINKT	£3.70	Add
008	000.02.424	CAP RETAINER (RED)	£5.10	Add
009	110.000.300	MONTAGEPLATTE VERZINKT	£14.27	Add
011	100.001.341	NO LONGER AVAILABLE	N/A	POA
012	100.001.181	WELLENABDECKUNG schwarz	£4.62	Add
013	100.022.835	WHEEL	£21.79	Add
014	110.000.095	SICHERUNGSSCHEIBE VERZINKT	£5.84	Add
016	720-0367637	WING NUT	£6.72	Add
017	100.000.795	GRIFFMUTTER M5	£11.09	Add
018	720-0367637	WING NUT	£6.72	Add
01A	111.11.114	NO LONGER AVAILABLE	N/A	POA
01B	100.000.613	RIEVET NUT	£5.95	Add
01C	100.004.493	NO LONGER AVAILABLE	N/A	POA
01D	100.000.949	RIVET	N/A	POA
020	110.015.026	PANEL-SELECT 5SP	N/A	POA
021	100.000.900	BELT	£25.97	Add
022	100.000.867	ENGINE PULLEY (RED)	£42.89	Add
023	100.000.919	DRIVE PULLEY	£16.30	Add
024	100.000.865	SHAFT	£147.33	Add
025	110.000.369	FLAIL (RED)	£9.59	Add
026	100.000.866	DISTANZRING fr Messerwelle	£16.85	Add
028	196-046-678	NO LONGER AVAILABLE	N/A	POA
030	100.000.875	BEARING	£22.95	Add
031	110.002.453A	NO LONGER AVAILABLE	N/A	POA
033	4212306	AXLE RETAINER	£8.11	Add
034	4212305	LOCKING BAR	£9.23	Add
035	110.002.513	NO LONGER AVAILABLE	N/A	POA
036	110.016.634	MOTORBREMSBGEL V-406	£49.40	Add
037	100.022.184	O.P.C. CABLE (RED)	£23.79	Add
038	110.017.253	NO LONGER AVAILABLE	N/A	POA
041	100.000.604	LOCK NUT	£2.79	Add
042	710-1376	CAP SCREW	£4.50	Add
044	100.000.496	SCREW	£3.41	Add
050	710-0627	HEX SCREW	£3.32	Add
051	712-0638	Nut 24.1421.12	£3.58	Add
052	712-0692	HEX NUT	£3.10	Add
054	712-0692	HEX NUT	£3.10	Add
055	712-0691	HEX NUT M6 DIN 985	£2.66	Add
056	110.000.588	DISTANZRING fr Spannrolle	£7.00	Add
057	110.000.396	NO LONGER AVAILABLE	N/A	POA
058	100.000.577	SCHRAUBE M8x18 DIN 923-5.8	£4.77	Add
059	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
060	110.000.340	SPANNROLLENHEBEL verzinkt	£8.38	Add
061	100.000.962	NO LONGER AVAILABLE	N/A	POA
062	736-0700	FLAT WASHER	£2.63	Add
063	720-0365638	HUBCAP 180-94 MTD-RED	£15.09	Add
065	100.000.894	SPANNSTANGE verzinkt	£3.96	Add
066	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
067	736-0689	L-WASHER	£3.26	Add
06L	100.000.825	SPRING LH	£2.98	Add
06R	100.000.826	SPRING RH	£2.98	Add
075	100.000.998	CLAMP	£2.45	Add
080	110.006.482	VORDERACHSE VERTI. E+V 406	£175.47	Add
081	100.000.792	SHIM	£3.41	Add
082	100.000.515	SCHRAUBE M6x12 SW 13, H=5,5mm	£6.45	Add
085	736-0689	L-WASHER	£3.26	Add
086	710-1375	SCREW	£3.69	Add
087	22.3419.27	Screw 22.3417.27	£4.00	Add
089	21.1441.76	NO LONGER AVAILABLE	N/A	POA
090	100.000.485	PASSFEDER 3/16"x25x5 DIN 6885	£3.96	Add
091	736-0757	LOCK WASHER 000.02.581	£3.49	Add
100	752T925000B	ENGINE TECNA 3,5HP TJ-1999835	£490.44	Add
101	110.016.609Z	BOWDENZUGHALTER VERTI. verz.	£10.87	Add
102	732-0820	SPRING-BRAKE TENSION	£4.50	Add
10A	782-7052638	STIELBOCKHALTERUNG,RECHTS	£13.53	Add
10B	782-7052668		N/A	POA
10C	782-7053638	MTD-ROT	£16.02	Add
10D	782-7053668		N/A	POA
13A	734-04149	WHEEL:180mm BAR	£20.36	Add
16A	720-0367668	FLUGELMUTTER M8	£8.51	Add
18A	720-0367668	FLUGELMUTTER M8	£8.51	Add
19A	100.000.830	INSULATING PART-A	£3.59	Add
19B	100.000.831	INSULATING PART-B	£3.59	Add
28A	100.001.390*	GESTELL-OBERTEIL FR FANGSACK	£29.22	Add
28B	749-1326637	GESTELL-UNTERTEIL FÛR FANGSACK	£35.53	Add
28C	110.005.672	HANDLE	£29.24	Add
28D	100.001.386	NO LONGER AVAILABLE	N/A	POA
29A	100.000.608	NO LONGER AVAILABLE	N/A	POA
29B	100.000.609	NO LONGER AVAILABLE	N/A	POA
35A	100.000.613	RIEVET NUT	£5.95	Add
51A	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
63A	720-0365668	HUBCAP 180-94 MTD-RED	£11.43	Add
80A	100.000.828	GRIP	£5.63	Add
88A	110.000.080	DISTANZROHR 12x1.8x10 verzinkt	£2.55	Add
88B	110.015.627	DISTANZROHR fr Motorwelle	£3.03	Add
