FG497_0010

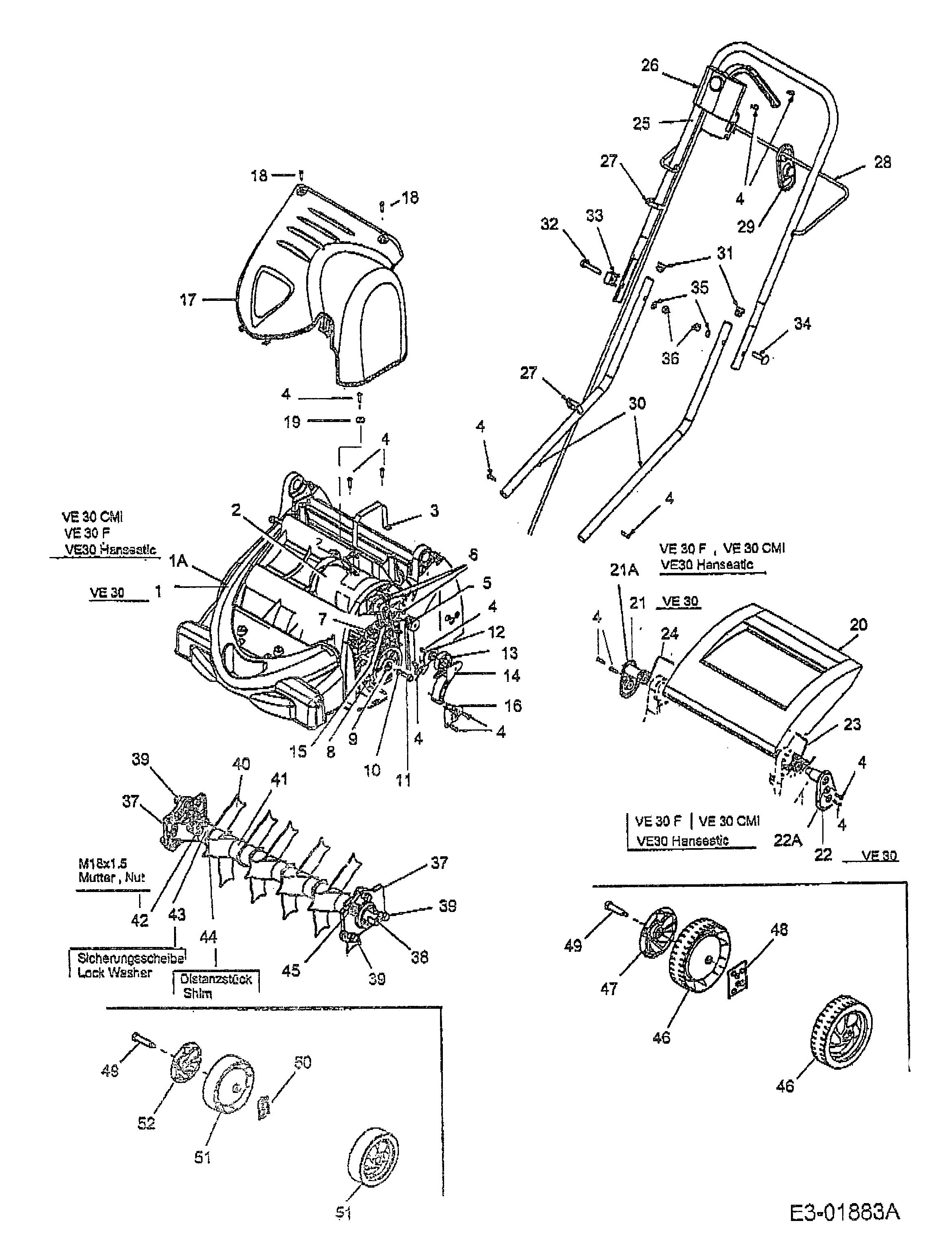

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	731-04512	HOUSING, RED	£73.34	Add
002	624-04006	NO LONGER AVAILABLE	N/A	POA
003	787-01114	STRAP:MTR	£12.45	Add
004	4934	SCREW	£6.05	Add
005	756-1220A	PUL:DR:.75 DIA. POLY VEE	£29.61	Add
006	710-04219	SCR:TAP:4.8 x 13 LG TYPE B	£2.49	Add
007	732-1033	COMPRESSION SPRING	£5.91	Add
008	756-04087A	PUL:3.090 POLY VEE 756-04087	£31.79	Add
009	736-0685	WASHER	£3.26	Add
010	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
011	710-04189	SCR:M6-1:20.00 LG DIN 6921-8.8	£3.33	Add
012	731-2559A	BRACKET	£4.80	Add
013	741-0124A	BALL BEARING	£20.00	Add
014	731-2558A	ARM, IDLER BEARING	£7.13	Add
015	754-04035	BELT:DR:POLY VEE	£19.55	Add
016	781-04060	BRKT:SUPT:IDLR	£14.44	Add
017	731-04511	HOOD	£21.63	Add
018	710-0969	SCREW	£3.35	Add
019	736-3090	FL.WASHER:.260 X .720 X .060	£3.11	Add
01A	731-04690	DECK:30 CM	£81.49	Add
020	631-04096	DOOR-REAR DISCHAR.	£20.29	Add
021	731-04564	CAP:RH:ROT RAL 3002	£4.70	Add
022	731-04585	CAP LH, RED	N/A	POA
023	732-04182	SPRING L.H. REAR FLAP	£4.11	Add
024	732-04163	TORSION SPRING RH	N/A	POA
025	748-1042A	UPPER HANDLE	N/A	POA
026	725-04147	SWLTCH PLUG - COMB	£40.98	Add
027	731-2454	BRKT:CABLE	£6.11	Add
028	747-1010A	ROD:GDE:CORD	£19.12	Add
029	726-0368637	RET:CORD:ELECTRIC	£8.32	Add
030	749-1312637	HANDLE TUBE 749-1312	£11.05	Add
031	720-0369	Plug 000.34.303	£5.91	Add
032	710-1703	Screw 21.1443.77	£3.39	Add
033	731-2427	CORD GUIDE	£2.98	Add
034	710-1718	NO LONGER AVAILABLE	N/A	POA
035	738-0649	SPRING WASHER	£68.13	Add
036	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
037	681-04018A	BRG ASM:SHF:COMPLETE 681-04018	£25.56	Add
038	711-04161	BLADE SPINDLE SHF: 30CM	£18.27	Add
039	738-04079	SCR:SHLDR:7.13x11.50:M6x1:8.8	£4.02	Add
040	781-04016A	BLADE:FIXED 781-04016	£5.19	Add
041	750-04190	SPCR:BLADE:FIXED	£5.00	Add
042	712-04053	NUT:M18X1.5 LH THREAD	£8.43	Add
043	736-04114	WASH:SAF:DIN W-493	£3.80	Add
044	750-04196	SPACER	£5.10	Add
045	760-04201	SPACER	N/A	POA
046	734-1334	WHEEL	N/A	POA
047	720-0343	HUB CAP, WITHOUT LOGO, BLACK 720-0343637	£6.11	Add
048	782-0843	AXLE SUPPORT	N/A	POA
049	733-1031	WHEEL AXLE	N/A	POA
050	732-0809	SPRING,EXT.1" (OBSOLETE) (OBSOLETE)	£6.45	Add
051	734-1885	WHL:COMPL:130mm:PLAS	£16.66	Add
052	720-0342	WHEEL CAP	£4.62	Add
21A	731-04698	CAP RH, GREEN	N/A	POA
22A	731-04697	CAP LH, GREEN	N/A	POA
