FG491_0010

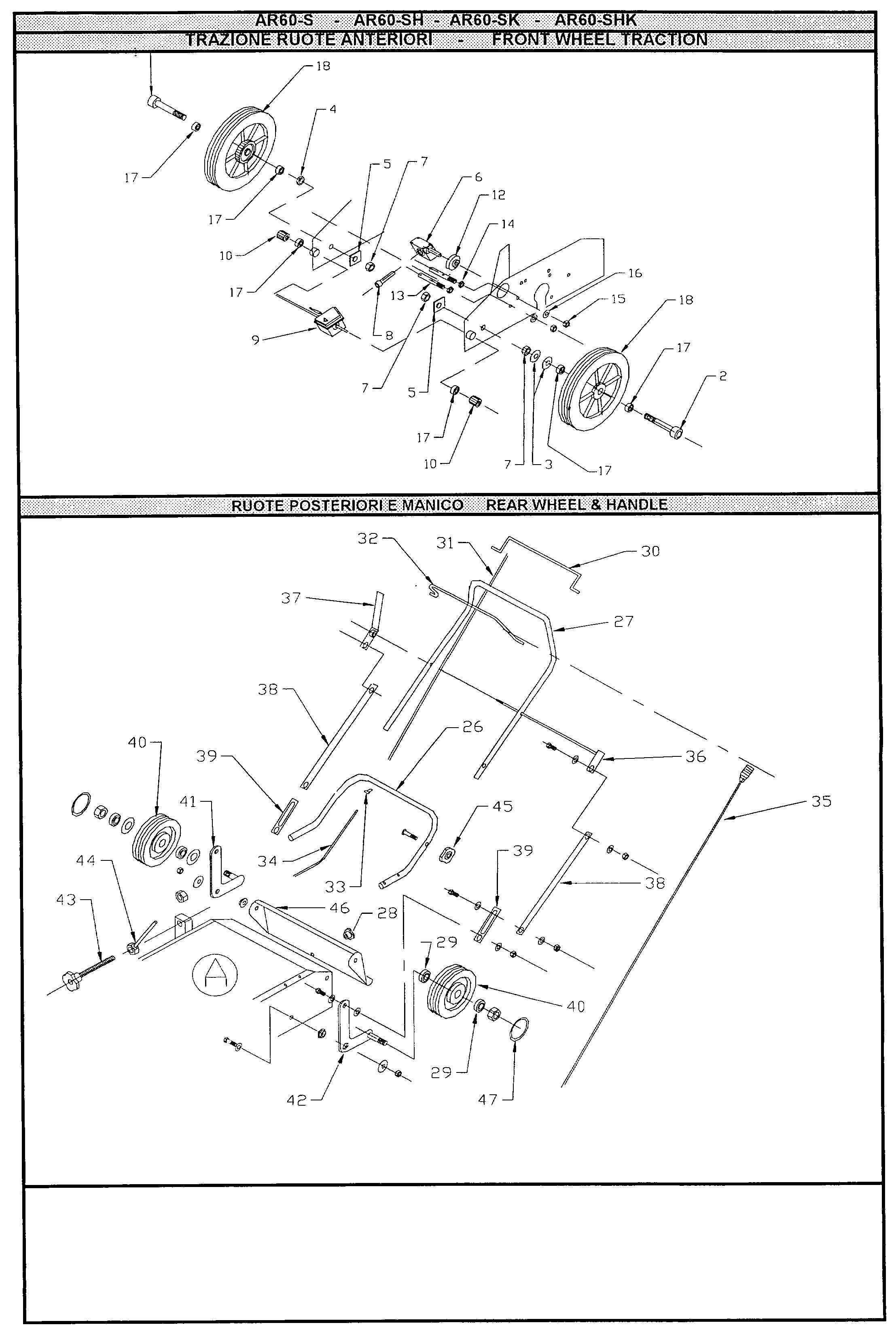

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG491_0010

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
005 TIR83 STIFFENER PLATE N/A POA
006 AR191 GEAR BOX 1:5 £274.48 Add
008 100AR GEAR BOXES CONNECTION PIN £81.22 Add
009 95AR GEAR BOX 1:9 WITH CLUTCH £128.94 Add
00A 651AR GREEN BODY FOR AR60-S N/A POA
00A 651AR GREEN BODY FOR AR60-S N/A POA
00A 65AR RED BODY FOR AR60-S N/A POA
010 210AS RIGHT FRONT WHEEL PINION N/A POA
011 211AS LEFT FRONT WHEEL PINION £55.57 Add
012 AR1112 PULLEY FOR TRACTION GEARBOX N/A POA
013 145AR GEARBOX SUPPORT N/A POA
017 RS6201 BEARING 6201 2 RS 12X32X10 £14.69 Add
018 RP300 FRONT WHEEL WITH GEAR £66.60 Add
026 AR900 HANDLE LOWER PART £72.81 Add
027 AR910 HANDLE UPPER PART £88.17 Add
028 VM9 BACK KNOB HOLE M8 N/A POA
029 RP160 BEARING FOR RP205 N/A POA
030 AR985 ZINC COATED TRACTION COMMAND LEVER £32.41 Add
032 AR980 ZINC COATED KNIVES COMMAND LEVER N/A POA
036 930AR LIFRING LEVERS CONNECTING PIN N/A POA
037 935AR LIFTING LEVER N/A POA
038 926AR LONG ROD FOR LIFTING SYSTEM N/A POA
039 AS282 SHORT ROD FOR LIFTING SYSTEM N/A POA
040 RP210 WHITE WHEEL DIA.205 RP205 N/A POA
041 226AR RIGHT WHEEL HOLDER N/A POA
042 S226AR LEFT WHEEL HOLDER N/A POA
043 AR340 WORKING DEPTH KNOB N/A POA
044 AR320 WORKING DEPTH KNOB STOPPER N/A POA
046 AR1091 DISCHARGE OPENING PROTECTION £55.30 Add
047 RP206 PLASTIC HUB COVER £7.47 Add
050 10B108 SCREWED PIN M10 L108 MM £15.13 Add
051 VP101 BELT GUIDE £14.85 Add
052 VP110 BELT SLIDE FLAT PIN N/A POA
053 938AR BELT PROTECTION CARTER £54.63 Add
054 10B108 SCREWED PIN M10 L108 MM £15.13 Add
060 BP204 Support+ bearing £50.85 Add
061 BPF204 Support + bearing £43.07 Add
063 S3F COPER IN PLASTIC FOR BEARING £10.44 Add
064 952Z PULLEY D98.5 REEL SIDE £40.88 Add
065 80A2 ENGINE SIDE PULLEY 25,5 HOLE N/A POA
065 80A2 ENGINE SIDE PULLEY 25,5 HOLE N/A POA
065 80A2 ENGINE SIDE PULLEY 25,5 HOLE N/A POA
065 80A2 ENGINE SIDE PULLEY 25,5 HOLE N/A POA
066 752Z N/A POA
066 AR7502 Pulley rotor side AR602 £126.58 Add
066 752Z N/A POA
066 AR7502 Pulley rotor side AR602 £126.58 Add
067 T45 Belt tighter N/A POA
068 TT62 FIXED BELT TIGHTER N/A POA
